power supply for rechargeable VHF locator units
DAME award nomination 2010
Of the products entered in the 2010 Design Awards METS (DAME), the Jury has selected 63 nominees from 13 countries to complete in eight categories. We are delighted to note that our AIS S.A.R.T. easyRESCUE was nominated to the Lifesaving & electronical safety category. Overall and category award winners will be announced at METS.
Wish us luck!
easyAIS A025 – easyAIS 2. Gen Manual
easyAIS A025 – easyAIS 1. Gen Manual
Antenna installation guide
Firmware for easyTRX2
Version: 2.5.4 | Produkt: TRX2 | for Hardwarerevision: 6+7 (see under Help>About within the programming tool), if you have an older Hardwareversion then 6 or 7, please use Firmware 2.5.2 from below. | Size 114 kb | Typ: Zip | Change: GPS optimizing, GPS rollover issue | Updated on: 04.06.2019
Version: 2.5.4 | Produkt: TRX2 | for Hardwarerevision: 6+7 (see under Help>About within the programming tool), if you have an older Hardwareversion then 6 or 7, please use Firmware 2.5.2 from below. | Size 114 kb | Typ: Zip | Change: GPS optimizing, GPS rollover issue | Updated on: 04.06.2019
Version: 2.5.2 | Produkt: TRX2 | Size 177 kb | Typ: Zip| Updated on: 06.03.2015
Version: 2.5.2 | Produkt: TRX2 | Size 177 kb | Typ: Zip| Updated on: 06.03.2015
Firmware for easyTRX2-S
Version 3.3.0 | Product: easyTRX2-S | Size: 125KB | Typ: Zip | Build-Date: 06.06.2019 | Changes: Optimizing of GPS reception, GPS rollover issue| Valid for Hardware-Revision: 8 – 14
Version 3.3.0 | Product: easyTRX2-S | Size: 125KB | Typ: Zip | Build-Date: 06.06.2019 | Changes: Optimizing of GPS reception, GPS rollover issue| Valid for Hardware-Revision: 8 – 14
Version 3.2.8 | Product: easyTRX2-S | Size 125KB | Typ: Zip | Stand: 13.05.2019 Change: Optimizing of GPS, GPS rollover issue
Version 3.2.8 | Product: easyTRX2-S | Size 125KB | Typ: Zip | Stand: 13.05.2019 Change: Optimizing of GPS, GPS rollover issue
Version 3.1.7 | Product: easyTRX2-S | Size 115KB | Typ: Zip | Stand: 27.03.2018 Change: N2K, GPS, error removal
Version 3.1.7 | Product: easyTRX2-S | Size 115KB | Typ: Zip | Stand: 27.03.2018 Change: N2K, GPS, error removal
Version 3.1.4 | Product: easyTRX2-S | Size 115KB | Typ: Zip | Stand: 17.08.2016
Version 3.1.4 | Product: easyTRX2-S | Size 115KB | Typ: Zip | Stand: 17.08.2016
A023 Software for easyTRX
Link2AIS | Version: X309 | A023 easyTRX | Size 36,4 MB | Type: Zip | Stand: 25.08.2016
Link2AIS | Version: X309 | A023 easyTRX | Size 36,4 MB | Type: Zip | Stand: 25.08.2016
Software for TRX2S and TRX2
Missing matrix32.dll
- Only necessary if there is an error message indicating the absence of this file.
Just place this “matrix32.dll” file in the same directory where you have installed the easyTRX2S programming tool
Programming-Tool
- Version: 4.10
- Change: New backend
For function see Boot Düsseldorf 2017
Programming-Tool
- Version: 4.9
- Change: improvement
COM-Port, Backend
Programming-Tool
- Version: 4.8
- Change: Updated Range filter.
SD-Analysetool
- Version: 1.5
- Size: 3.55MB
- Tool to analyze the content of SD card or internal storage of easyTRX2/S/ easyTRX3
- A GPS antenna must be connected in order to record the data.
- Also you need to input the SD card first into easyTRX2 and format it first together with the programming-tool.
WD-Terminal
- Version: 1.2
- Tool for reading / monitoring the incoming data to the COM port.
- This is a simple tool, which is used to replace the missing “Hyper Terminal” from Windows 7.
Complete package of files from CD:
Contains:
- Programming-Tool 3.37
- SD-Analysetool 1.3
- WD-Terminal 1.2
Firmware (not included)
USB Drivers – External link (ftdichip.com)
APPs
For Android:
For Apple:
A023 easyTRX – Firmware
Version: 10.0.13.0 | Produkt: TRX Produkte | Size 157 KB | Typ: Zip | Stand vom : 15.07.2010
Version: 10.0.13.0 | Produkt: TRX Produkte | Size 157 KB | Typ: Zip | Stand vom : 15.07.2010
A027 easySPLIT OCB
This product range is no longer produced.
All downloads, such as firmware, software and the manual can be found here under “Downloads”.
Unfortunately, repairs for easySPLIT devices are no longer possible.
A027 easySPLIT OCB
Functionality:
The easySPLIT OCB (OCB stand for “operates Class B) is checking whether there is a transmission power from the VHF radio or from the Class B AIS receiver to the Antenna. When this is the case the easySPLIT disconnects the other connected units very quickly (the AIS receiver and the car radio). If all the units are in reception mode, the units are all connected to the same antenna.
A quick disconnection is necessary because the Class B AIS Transceiver transmit their signal with a power of 2 W in a very short period of time. Therefore, the used splitter, the easySPLIT OCB, must disconnect the other units even faster than the Class B AIS transceiver is giving out its message. The easySPLIT OCB is disconnecting the other units in less than
1 ms!
What else do I need to use the easySPLIT OCB?
You do not need anything apart from your already existing units (e.g. VHF antenna) and of course a power supply.
What is suitable for the easySPLIT OCB?
All existing VHF radios, all existing AIS Class B transceiver and all existing FM radios can be connected to the easySPLIT. Nevertheless, the optimum of performance can be achieved if you use other units of the Weatherdock AG because these units are perfectly-matched.
- Frequency selective power divider with 2 transmit/receive ports (VHF radio and Class B AIS) and 1 receiver port
- VHF radio (IN/OUT): 50Ohm, SO239
- AIS transceiver: 50Ohm, BNC
- FM radio: 50 Ohm, BNC
- VHF antenna: 50Ohm, SO 239
- Power: 9v-28VDC, @<120mA (average of different operation modes)
- Operation conditions: under deck, 0°C to 60°C
- 140 mm (l) x 140 mm (w) x 35 mm (h)
- Weight: approx. 400 g
- Active VHF Splitter to connect to the existing VHF antenna:
- VHF radio
- AIS transceiver Class B (recommended
- for use with easyTRX) or AIS receiver
- FM car radio
- Enlarged DC power input
- Item number A027
A087 easyWATCHBOX
Documents
easyWATCHBOX – external signal source for different dangerous situations.
With the easyWATCHBOX you are informed about the most important dangerous exposures in pleasure boating within only one box:
- CPA alert for collusion potentials
- AIS S.A.R.T. alert for incoming emergency signals
- Battery low
To be single handed aboard don‘t gives you the time to watch out the chartplotter for danger potentials every minute. In these situations it is very useful to be informed automatically.
Function
The easyWATCHBOX will be integrated into the data stream between the AIS device and the chartplotter or PC/Laptop. Now the incoming AIS data are analyzed for special parameters. If one of these figures is triggered, for example AIS S.A.R.T. emergency signal, the unit starts alerting by visual and acoustic signals.

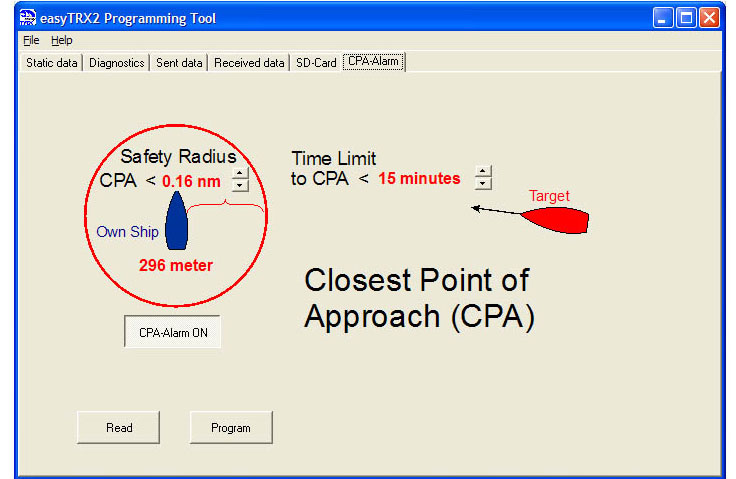

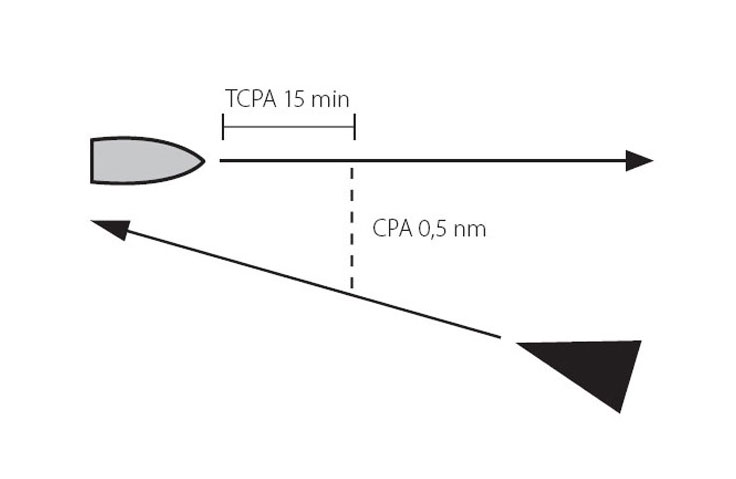

By means of two buttons it is possible to adjust the time and distance figures for the CPA alert.
The triggered alert could be muted by button. But only this special case. If another dangerous situation comes up, the alert will go on again.
This CPA alert function can be disarmed by pressing two buttons at the same time.
Another alerting function is battery low. By means of being plugged to the boats power supply, the voltage is checked
continously by the easyWATCHBOX.
If a certain voltage level is undershot, the unit starts alerting.
What is nessesary to run the easyWATCHBOX?
To use the easyWATCHBOX an AIS Receiver or Transceiver is the only request.
- Monitoring of the AIS data stream via NMEA0183 input
- Alerting device for AIS S.A.R.T. active (message 1 and 14)
- Alerting device for CPA figures
- Alerting device for battery low
- Acoustic (95dB) and visual alert (LED)
- Power supply 9-32VDC, 6mA
- Internal signal source with 95dB
- LED signal for AIS S.A.R.T.
- CPA Alert (closest point of approach)
- Battery Low
A024 easyDVB-T
This product range is no longer produced.
All downloads, such as firmware, software and the manual can be found here under “Downloads”.
Unfortunately, repairs for easyDVB-T devices are no longer possible.
A024 easyDVB-T
Functionality:
Separates the frequency bands according to the different applications and amplifies those bands which are not received as well as the nominal frequency band. As a consequence you can receive DVBT Signals (DVBT is identical to? DTT; ATSC;TDT; ISDB ) for your digital television receiver.
Separates the frequency bands according to the different applications and amplifies those bands which are not received as well as the nominal frequency band. As a consequence you can receive DVBT Signals (DVBT is identical to? DTT; ATSC;TDT; ISDB ) for your digital television receiver.
What is necessary to use the easyDVBT
Nothing special is necessary. To watch television you need to connect the easyDVBT to the digital terrestrial receiver and the power supply.
What is suitable for the easyDVBT?:
All existing DVBT (DTT, ATSC,TDT, ISDB ) receivers, VHF radios and FM car radios can be connected to the easyDVBT. You can also connect the easySPLIT to integrate your AIS receiver, e. g. “easyAIS”.
- Frequency selective divider with 1 transmit/receive port (VHF radio), 1 DVBT receiver port and 1 FM car radio port
- VHF antenna: 50Ohm, BNC
- VHF radio (IN/OUT): 50Ohm, BNC
- DVBT receiver: 75Ohm, BNC
- FM radio: 50 Ohm, BNC
- Power: 9v-28VDC, @<120mA
- Operation conditions: under deck, 0°C to 60°C
- 140 mm (l) x 140 mm (w) x 35 mm (h)
- Weight: approx. 325 g
- Antenna splitter, enables the reception of DVBT frequencies by means of a customary VHF Antenna
- Integrated Amplifier
- Highest sensitivity over the entire frequency band
- Enlarged power input from 9VDC-28VDC
A026 easySPLIT
This product range is no longer produced.
All downloads, such as firmware, software and the manual can be found here under “Downloads”.
Unfortunately, repairs for easySPLIT devices are no longer possible.
A026 easySPLIT
Functionality:
The easySPLIT is checking whether there is a transmission power from the VHF radio to the antenna. If this is the case the easySPLIT disconnects the other connected units very quickly (the AIS receiver and the car radio).
If all the units are in reception mode, the units are all connected to the same antenna.
The easySPLIT is checking whether there is a transmission power from the VHF radio to the antenna. If this is the case the easySPLIT disconnects the other connected units very quickly (the AIS receiver and the car radio).
If all the units are in reception mode, the units are all connected to the same antenna.
What is necessary to use the easySPLIT
You do not need anything apart from your (already) existing VHF antenna and of course a power supply.
What is suitable for the easySPLIT?
All existing VHF radios, all existing AIS receivers and all existing FM radios can be connected to the easySPLIT. Nevertheless, the optimum performance can be achieved if you use other units of the Weatherdock AG because these units are perfectly-matched.
- Frequency selective power divider with 1 transmit-receive port (VHF Radio) and 2 receiver ports
- VHF antenna: 50Ohm, SO 239
- VHF radio (IN/OUT): 50Ohm, SO239
- AIS receiver: 50Ohm, BNC
- FM radio: 50 Ohm, Chinch
- Power: 9v-28VDC, @<120mA average of the different operation modes
- Operation conditions: under deck, 0°C to 60°C
- 140mm (l) x 140mm (w) x 35mm (h)
- Weight: approx. 450 g
- Active VHF Splitter to connect to the existing VHF antenna:
- VHF radio
- AIS receiver (recommended for use with the easyAIS)
- FM car radio
- Enlarged DC power input
- Item number A026
A040 easyRESCUE
Product information
- AIS S.A.R.T. transmitter
- Activation: Manual activation by pressing a button
- Dimensions (L/W/H): 125 x 68 x 30 mm
- Weight: app. 210g
EAN
4260276740406
Approval
Our easyRESCUE Rescue Transmitters have a basic approval and do not have to be registered anymore!
Product Pictures
A118 easyPOSALERT
Persistent locating where necessary!
The easyPOSALERT is a portable position transmitter which uses VHF technology.
The device enables the persistent locating and monitoring of moving objects within range.
Function:
The easyPOSALERT has a built-in GPS receiver. After manual activation the device transmits the current GPS position by means of VHF signals in a preset time interval. This position report is sent on customized VHF frequencies, so a “closed user group” may be arranged. Each unit of the easyPOS-ALERT can be personalized individually. In case of an emergency there is an alert function which transmits on regular frequencies receivable by everyone within range.
The easyPOSALERT is floatable and waterproof to a depth of 10m. The rechargeable batteries have a lifespan of 5 days, depending on the pre-set transmission interval. The transmission range of the easyPOSALERT is from about 10nm (10m height of receiving antenna) up to 40nm (air craft at 1000 ft).
The easyPOSALERT is especially suitable for race boats, ferry boats, pilot vessels, jet-skis, smaller fishing boats and charter boats. Fact is: the easyPOSALERT is needed where persistent locating and monitoring of moving objects becomes necessary.
What is necessary to run the easyPOSALERT?
Each object going to be monitored and located needs an easyPOSALERT. The charging station provides intelligent and ideal charging, which ensures the long lifespan of the batteries. The object-related data is programmed into the device by the customers administrator or by the manufacturer. Only a VHF receiver, the easyAIS, is needed to receive the customized signals of the easyPSOALERT. It is factory pre-set to the custom frequencies. Normally the “closed user group” as well as all other objects are displayed on the chart plotter or PC screen.
The usage of an easyTRX2S-IS allows the management of different “closed user groups” on the same customized frequency
- Portable VHF position transmitter
- Rechargeable NiMH batteries
- Battery lifespan: 12 hours up to 5 days with full battery power (according preset transmission interval)
- Transmission range of approx. 10 NM (depending on the height of the receiving antenna)
- Made in Germany
Additional equipment:
- charging station in different variants a) charging station b) programming station and c) combination charging/programming available (quantity and type depends on the customer requirement. Other charging stations cannot be used!)
- portable easyINFOBOX with a customized receiver and a terminal device
- customized receiver to connect it to customary display devices
- PC software to display the data
- Transmission power: >= 2 W (usually for objects)
- Specifiable frequency range from 155.5 MHz to 162.25 MHz, 25 kHz channel spacing
(Please ask your local authority for costumer frequencies.) - Operating temperature range: -10 °C to +55 °C
- Storage temperature range: -30 °C to +60 °C
- Dimensions (L x W x H): 130 x 70 x 30 mm
- Weight: 250 g
- Position report of “closed user group” by means of proprietary frequencies
- Possibility to transmit alert signals
- Waterproof up to a depth of 10 m
- Usage free of charge
- Independent of any GSM network
- Transmission range of approx. 10 nm
A21000 easyPOS’N’HOOK
easyPOS’N’HOOK (A21000)
Portable VHF position transmitter
The current position of a buoy is displayed
within the transmission range on the
chart display device or PC screen.
Receive current GPS position of a buoy on custom radio frequency.
Deutsch
|
|
- Current GPS position of a buoy
- Rechargeable NiMH batteries with an operating time of 96+ h
-
Transmission range of approx. 10 NM
Important note: Product is discontinued
We would like to inform you that the easyPOS’N’HOOK will no longer be produced.
If you have any questions or need further information, please contact our customer service team at info@weatherdock.de.
For more information and a non-binding offer, please contact us:
+49 (0)911-376638-30
info@weatherdock.de
Product photos
Product information
Function
With an integrated GPS-module the easyPOS’N’HOOK transmits the current position of the buoy similar to an AIS message via custom VHF frequencies. The sent position and the object-data programmed into the device will only be received when the receiver on the boat is tuned to the same custom frequency. The current position of the buoy will be displayed on a terminal or PC screen within the transmitter range.
With the TEST button all settings and transmissions can be checked before starting. Being activated once by pressing RUN, the POS’N’HOOK does send its position signal currently, one time per 3 minutes.
The easyPOS’N’HOOK is developed from of the approved easyRESCUE especially for applications like this.
What is needed?
What is necessary to run the easyPOS’N’HOOK?
Each buoy going to be exposed needs one of the easyPOS’N’HOOK. The charging station provides intelligent and ideal charging, which ensures the long lifespan of the batteries. The object-related data is programmed into the device by the customer administrator or the manufacturer. Only an AIS receiver, the easy AIS, is needed to receive the customized signals of the devices. It is factory preset to the custom frequency.
Highlights
Technical Data
Advantages over competitors
For more information and a non-binding offer, please contact us:
+49 (0)911-376638-30
info@weatherdock.de
Additional devices
A121 Power Supply Socket
A124 easyPROGRAMER
programing unit for rechargeable VHF locator units
B110 easyPOS’N’HOOK buoy housing
robust plastic housing with Stealness Steal holder for fixing VHF locator units
Downloads
ALARIS100
ALARIS100 is a palm-sized portable locator beacon designed for law enforcement and mobile squads. The unit is based on VHF technologies and gives LIVE-GPS-Position-Report of every team-member on customized and encrypted frequencies.
Due to its size and rigid housing the ALARIS100 can be worn with a pocket on the balistical vest easyily during a mission.
The ALARIS100 is completely independent of any GSM network infrastructure, so there will be no problem if mobile communication systems are shut down for safety reasons or just overloaded by massive activity in social media networks by the people.
With its very longlasting battery power the ALARIS100 is a reliable partner during long-time multi-location-events. Within the shortest transmission mode battery lifetime wil be approx. 20 hours before there is a need for recharging.
The additional “man down” panic button triggers a special marked position report on the screen.
A049 easyRESCUE-Automatic
Product information
- AIS S.A.R.T. transmitter
- Activation:
- Automatic activation by full water contact
- Manual activation by pressing a button
- Dimensions (L/W/H): 125 x 68 x 30 mm
- Weight: app. 210g
EAN
4260276740499
Approval
Our easyRESCUE Rescue Transmitters have a basic approval and do not have to be registered anymore!
Product Pictures
A056 easyCPA³
Documents
Notified immediately if necessary!
The CPA³-alarm is an additional accessory to bundle different functions and actions at a central point.
Functionality
The CPA³-alarm combines an acoustic signal generator for a triggered CPA-function and an incoming AIS S.A.R.T. emergency notification with a switch to change to the “silent mode” and an uncovered “PAN PAN”-switch.
This device receives impulses from the easyTRX2 and TRX2-IS, respectively once the set CPA-function has been triggered and turns them into acoustic signals. This also applies to the incoming AIS S.A.R.T emergency notifications. These two acoustic signals differ from one another in order to be able to allocate them more easily.
The “silent mode” switch turns off the transmit function of the connected easyTRX2 or easyTRX2-IS, with the result that no data about the vessel and its position is sent. This notification contains the message that you are having a problem and that you are asking for help. An AIS telegram type 14 is sent.
What is necessary to operate an easyCPA³-alarm?
It is required to have an easyTRX2 or an easyTRX2-IS in operation. Only with these two devices it is possible to set the incoming AIS signals in relation to the settings of the CPA-function and to initiate respective actions.
Dimensions
- Bottom plate: length 81 mm, width 31 mm
- Box: height 27 mm
- acoustic pressure of the signal generator: 105 decibel
- frequency: 2.9 kHz continuous tone
- operating temperature range: -20°C – +60°C
- operating voltage is analogous to the connected easyTRX2 or easy TRX2-IS
- protective cap for the “PAN PAN” switch prevents an accidental triggering
A052 easyCPA
Information
The CPA-alarm is an external signal generator for the CPA (Closest Point of Approach)-function and for the acoustic notification of an incoming AIS S.A.R.T emergency telegram.
The CPA-alarm is an external signal generator for the CPA (Closest Point of Approach)-function and for the acoustic notification of an incoming AIS S.A.R.T emergency telegram.
Functionality:
The easyCPA-alarm is designed as additional equipment to the AIS transmit-receivers easyTRX2 and easyTRX2-IS and it improves the safety on board.
With this external acoustic signal generator it is ensured that previously defined potential dangers are recognized through the CPA-function of the receiver and hence are signaled clearly.
AIS emergency telegrams that were sent by activated AIS S.A.R.T are recognised and signalized. Thus a temporarily delayed perception through sleep or turned off terminal devices is prevented.
The device receives impulses by the easyTRX2 and by the easyTRX2-IS, respectively as soon as the set CPA-function was triggered and turns them into acoustic signals. The easyCPA-alarm has two different acoustic signals, to be able to differentiate between CPA-warnings and AIS S.A.R.T.
What is necessary to operate an easyCPA-alarm?
You need an easyTRX2 or an easyTRX2-IS in operation. Only with these two devices is it possible to set the incoming AIS signals in relation to the settings of the CPA-function and to initiate respective actions
- Dimensions
- Bottom plate: length 81 mm, width 31 mm
- Box: height 27 mm
- acoustic pressure of the signal generator: 105 decibel
- frequency: 2.9 kHz continuous tone
- operating temperature range: -20°C – +60°C
- operating voltage is analog to the connected easyTRX2 or easy TRX2-IS
A040-BW-COM easyRESCUE
Product information
- AIS S.A.R.T. transmitter
- Activation:
- Automatic activation by rip cord automatic with magnetic switch
- Automatic activation by full water contact
- Manual activation by pressing a button
- Dimensions (L/W/H): 137 (top of magnetic switch) x 70 x 30 mm
- Weight: app. 220g
EAN
4260276743407
Approval
Our easyRESCUE Rescue Transmitters have a basic approval and do not have to be registered anymore!
Product Pictures
A122 Tamperproof & Powersocket
Product information
Technical Data
EAN
4260276741229
Product Pictures
A121 Power Supply Socket
Product information
The A121 Power Supply Socket can be easily connected to the electrical system or another external power source. The cable ends only need to be connected accordingly. Mains voltages of 9 to 24 volts are possible. If you want to work with the national power grid, we recommend the A180. Here is a Euro plug for the 230 volt application already preassembled. All you need is an adapter plug for your country or socket type.
EAN
4260276741212
Product Pictures
A124 easyPROGRAMER
Product information
With the easyPROGRAMER of Weatherdock you can individualize TRACKING devices. Specific names and characteristics can be selected.
EAN
4260276741243
Product Pictures
A166 easyAIRDROP-RESCUE
This product is no longer produced.
We continue to offer the service for easyAIRDROP devices.
Approval
Our easyRESCUE Rescue Transmitters have a basic approval and do not have to be registered anymore!
The easyAIRDROP contains the AIS S.A.R.T. transmitter unit easyRESCUE to support
rescue teams, such as SAR airplanes or SAR helicopters.
rescue teams, such as SAR airplanes or SAR helicopters.
Packed in a water protected box, the easyAIRDROP with the built in AIS S.A.R.T. is ready to go for a situation of emergency. Just open the box, get the easyAIRDROP and throw it out. An automatic triggering function activates the internal VHF rescue locator when it is submerged into the water.
Being activated once, the unit transmits a current AIS emergency telegram to all AIS receivers
within range. Position is updated every minute with COG, SOG and identification number of the unit.
Function
The air deployable housing is made of 2 floatable plastic parts and is kept together with 2 straps. A soluble tablet will fix the straps until the whole unit is submerged into water.
The AIS S.A.R.T. locator unit easyRESCUE with its antenna folded, is mounted inside the housing.
By dissolving the tablet, the housing is opened, the antenna unfolds and the unit starts transmission by water activation. A weight at the bottom will keep the easyAIRDROP-RESCUE in upright position for best possible radiation.
With the long antenna radio range will be 9 to 12 nm to a vessel. SAR airplanes or helicopters will receive the signal in a distance of up to 80 nm by 500 feet flight level.
What is necessary to run the easyAIRDROP-RESCUE?
The easyAIRDROP with the internal AIS S.A.R.T. unit is ready: „grab and go“
To receive the transmitted signal, an AIS capable chart plotter or PC software is required to display the rescue relevant data.
- Internal fully approved & certified VHF rescue locator unit easyRESCUE
- Approvals by
* German Federal Maritime Agency BSH
* SOLAS
* United States FCC
* United States Coast Guard - Water activation when submerged
- Current GPS position via VHF – the fastest rescue possible
- Floatable due to special housing
- High radio range
* up to 12 nm (on water surface with 20 ft receiving antenna height)
* up to 80 nm (flight level 500 ft) - 96 hours continuous transmission after VHF rescue locator unit is activated (SOLAS standard)
- BSH approval for base unit easyRESCUE
- Radiated RF power, approx. 2 W
- Dimensions of easyAIRDROP housing
# Height: 13 cm
# Width: 20 cm
# Weight: approx. 750 gram - Operating conditions: -20°C – +65°C
- Battery lifespan: 5 years
A040-D easyRESCUE-DIVE
EAN
4260276740062
Approval
Our easyRESCUE Rescue Transmitters have a basic approval and do not have to be registered anymore!
Each diver has certainly wondered what happens if he gets separated from his “Buddy” or dive group and in addition has no orientation where the dive boat is.
The easyRESCUE-DIVE is the solution to this problem.The small portable transmitter can be worn on the vest during the dive. Don’t panic, it is water-resistant to more than 100 meters!
If the case described above occurs, the easyRESCUE-DIVE is activated by the diver on water surface by the touch of a button. Via VHF radio the dive boat receives detailed information regarding the exact GPS position of the diver along with his/her Course Over Ground (COG) and Speed Over Ground (SOG) if he/she is in a current. This information is updated every minute. Just fix the unit at the carried along “ALERT BUOY” or reach you arm out of the water as high as possible.
- Description: easyRESCUE-DIVE A040-D
- Certification BSH: BSH / 4615 / 4361565 / 10 (for base unit easyRESCUE A040
- Radiation Power: 2 Watt
- Waterproof: 100% down to 100 meter diving depth
- Operation temperature: -20°C – 65°C
- Dimensions: Length: 125mm | Width: 68mm | Height: 30mm
- Weight: 380 Gram
- Battery lifetime: 10 Years (unit has to be disposed properly)
- Radiated power: 2 Watt
- Operation temperature: -20°C – 55°C
- Dimensions: Length 128 mm
- Width: 76mm Height: 32mm
- Weight: 380 Gram
- Battery lifetime: 10 years
- Battery capacity in „Alert mode“: 45 hours
- No registration
- No VHF radio license
- No additional costs
A025 easyAIS
Running out mid/end 2017!
Service for this equipment continues!
<iframe style="overflow: hidden;" src="https://www.easyais.com/tools/running-out/" width="100%" height="130px" scrolling="no" sandbox="allow-same-origin allow-scripts allow-forms"></iframe>
Functionality:
The easyAIS receives the AIS VHF radio signals, most sent by commercial vessels (but also from an increasing figure of pleasure boaters). These signals then proceed into a NMEA Signal which can be interpreted from the latest chart plotter or PC software.
What is necessary to use the easyAIS 2nd Generation?
” You need to have your own VHF antenna. As an alternative you can use the easySPLIT, with which you can connect the existing VHF antenna for the reception of the AIS.
Which Chart plotter/PC software fits together with the easyAIS?:
” Most of the new chart plotters or PC software are capable to display AIS data on the screen. Nevertheless please check with your distributor whether your chart plotter/PC software is capable and can manage and display incoming NMEA data.
- 2 channel receiver to receive AIS data on 161,975MHz and 162,025 MHz
- Sensitivity: -112dBm (Therefore -3dBm better than the norm for class A receivers!!)
- Channel spacing: 25kHz
- Enlarged power input: 9VDC-28VDC, 80mA
- Anschluss: 9V – 28 VDC, 80 mA
- Antenna connector: BNC socket. 50 Ohm
- Baud rate: 38,4kB (optional 4,8kB by means of a jumper setting)
- NMEA output message: VDM
- Ambient conditions: under deck, 0°C to 60°C
- 140mm (l) x 140mm (w) x 35mm (h)
- Weight: app. 400 gr
- Integrated multiplexer up converting from 4,8kB to 38,4kB
- 2 channel AIS receiver with newest micro processor (µP) technology
- Highest sensitivity at optimized selectivity
- Integrated multiplexer up converting from 4,8kB to 38,4kB
- Enlarged DC Power Input
- Article number A025
A142 easyTRX2S
This product range is no longer produced.
All downloads, such as firmware, software and the operating instructions can be found here under “Downloads”.
Unfortunately, repairs for easyTRX2 devices are no longer possible.
EAN
4260276741427
Function
The ClassB unit easyTRX2S receives AIS ClassA and ClassB signals and transmits its own data according to ClassB standard. All the easyTRX2S series have a great variety of applications: You can connect it to a PC or laptop through a USB port. Using a software, you can choose the speed transmission between 38400 or 4800 Baud data rate. Function activity is shown by 8 LED’s. The easyTRX2S is able to interpret incoming AIS data for CPA alert or AIS S.A.R.T. emergency messages. Additionally, the easyTRX2S devices can be used as power source for external alerting devices. All received and transmitted AIS data can be stored in and internal SD Card recorder. With the build-in multiplexer input, 3 devices with different baud rate can be plugged to the easyTRX2S units. The external cable gives the possibility to choose between “silent mode” or “PAN PAN emergency call”.
What is needed to run the easyTRX2S?
The ClassB device needs a separate GPS antenna and its own VHF antenna. As an alternative you can run the easyTRX2S with the VHF antenna switch easySPLIT-OCB. A separate GPS antenna is still needed. Another alternative is the VHF/GPS combi antenna.
easyTRX2S and gadgets that work together
Your PC has to work at least on WIN XP SP2 and screen resolution 1024*768. Plotter or PC software have to be AIS compatible in order to display incoming AIS data on the screen. A MMSI number is required to broadcast data. You will get it from German Bundesamts fur Seeschifffahrt und Hydrographie or the competent authority on your country. Your distributor will set up this MMSI on your device.
- Additional USB port for more connectivity
- 38400 or 4800 Baud rate selection possible by software
- 8 operating LEDs for more convenience
- SD Card recorder for blackbox employment
- Enlarged voltage input
- Integrated multiplexer
- Separate cable harness for “silent mode” or “PAN PAN” persistent Signal
- Plotter independent CPA alert
- Plotter independent AIS S.A.R.T. alert
- AIS receiver and transmitter with integrated GPS receiver
- 1 transmitter, 2 receiver
- Responsivity: -107dBm minimum, typically -112dBm
- Data rate: 38400 or 4800 Baud, bi-directional
- NMEA telegram type: VDM
- Adapter VFH antenna: 50 Ohm, SO2239
- Adapter GPS antenna: 50 Ohm, BNC
- Cabin mounting, IP60, -25°C – 55°C
- Dimensions: 198mm (L) 158mm (W) 47mm (H)
- Weight: approx. 275 grams
- Plotter independent AIS S.A.R.T. alert
- Plotter independent CPA alert
- USB port
- SD Card recorder
A143 easyTRX2S-WiFi
This product range is no longer produced.
All downloads, such as firmware, software and the operating instructions can be found here under “Downloads”.
Unfortunately, repairs for easyTRX2 devices are no longer possible.
EAN
4260276741434
The ClassB unit easyTRX2S receives AIS ClassA and ClassB signals and transmits its own data according to ClassB standard.
All the easyTRX2S devices have a great variety of applications: You can connect it to a PC or laptop through a USB port. Using a software, you can choose the speed transmission between 38400 or 4800 Baud data rate. Function activity is shown by 8 LED’s. The easyTRX2S is able to interpret incoming AIS data for CPA alert or AIS S.A.R.T. emergency messages. Additionally, the easyTRX2S devices can be used as power source for external alerting devices. All received and transmitted AIS data can be stored in and internal SD Card recorder. With the build-in multiplexer input, 3 devices with different baud rate can be plugged to the easyTRX2S units. The external cable gives the possibility to choose between “silent mode” or “PAN PAN emergency call”.
To visualize data on your mobile device, Weatherdock offers a free App named “easyAIS”, which is available for download through the Apple store.
In case you are running a mobile device with lower screen resolution, we still recommend to use a suitable plotter with appropriate resolution for your safety.
Function:
The easyTRX2S-WiFi receives the incoming AIS data sent by commercial vessels (Class A) and pleasure boats (Class B). These telegrams are processed into a NMEA protocol which can be interpreted by chart plotters or PC software. With the wireless link to your mobile device, these data will promptly be received there as well.
The easyTRX2S-WiFi transmits according the AIS-Class B standard all own AIS data like ship name, speed and course over ground, etc. to every AIS receiver or transceiver within its radio range. Using the easyTRXS2-WiFi is the simplest way to make yourself visible to others, having all necessary information about your surrounding too.
Running the “easyAIS” App, you will see a radar screen appearing, showing all received AIS targets within range. A click on a target will provide you detailed information about this specific target, such as ship’s name, speed and course over ground, etc. Additional information about your own boat’s navigational status like your own speed, course, wind, etc. are available through sub-menus of the App, if you feed the easyTRX2S-WiFi built-in multiplexer with boat information.
fully compatible with popular AIS navigational Apps for iPad®, iPhone® or iPod®, e.g.
– iNavX (charged) A new license for mobile device is mandatory.
– AIS Radar (charged)
– iPilot (charged)
fully compatible to charged Android-App iRegatta
fully compatible to Windows XP, Vista or Windows 7 (system running 32 bit)
What is needed to run the easyTRX2S?
The ClassB device needs a separate GPS antenna and its own VHF antenna. As an alternative you can run the easyTRX2S with the VHF antenna switch easySPLIT-OCB to use your existing VHF antenna. A separate GPS antenna is still needed. Another alternative is the VHF/GPS combi antenna.
easyTRX2S and gadgets that work together
Your PC has to work at least on WIN XP SP2 and screen resolution 1024*768 for configuration. Plotter or PC software have to be AIS compatible to display incoming AIS data on the screen. A MMSI number is required to broadcast data – you will get it from German “Bundesnetzagentur” or the competent authority on your country. Your distributor will program this number on your easyTRX2S.
New WiFi function
40 clients at the same time by Multi-User-Connection AIS and Internet at the same time
- AIS data by WiFi from easyTRX2S to a router with internet connection
- AIS data & internet available on all devices connected to the router (e.g. WiFi from harbour, own 3G/4G hotspot aboard)
- Additional USB port for more connectivity
- 38400 or 4800 Baud rate selection possible by software
- 8 operating LEDs for more convenience
- SD Card recorder for blackbox employment
- Enlarged voltage input
- Integrated multiplexer
- Separate cable harness for “silent mode” or “PAN PAN” persistent signal
- Plotter independent CPA alert
- Plotter independent AIS S.A.R.T. alert
- WiFi range of 30 m without any special antennas (depending on local conditions)
- fully compatible with popular navigational software or Apps for iPhone or iPad
- AIS receiver and transmitter with integrated GPS receiver
- 1 transmitter, 2 receiver
- Responsivity: -107dBm minimum, typically -112dBm
- Data rate: 38400 or 4800 Baud, bi-directional
- NMEA telegram type: VDM
- WiFi maximum range: 100 m (in free air)
- WiFi usual range: approx. 30 m without the use of any special antenna
- maximum number of WiFi users: 1
- Adapter VFH antenna: 50 Ohm, SO2239
- Adapter GPS antenna: 50 Ohm, BNC
- Cabin mounting, IP60, -25°C – 55°C
- Dimensions: 198mm (L) 158mm (W) 47mm (H)
- Weight: approx. 275 grams
- Plotter independent AIS S.A.R.T. alert
- Plotter independent CPA alert
- USB port
- SD Card recorder
- WiFi connection for more convenience in navigation
