A147 easyTRX2S-iGPS-N2K-WiFi

This product range is no longer produced.

All downloads, such as firmware, software and the manual can be found here under “Downloads”.

EAN

4260276741472



The ClassB unit easyTRX2S-IGPS-N2K-WiFi receives AIS ClassA and ClassB signals and transmits its own data according to ClassB standard. The received data telegrams are processed into a NMEA protocol which can be interpreted by chart plotters or PC software.

Function

All the easyTRX2S series are performing with a lot of useful features:

By means of USB port connection to PC or Laptop is possible. With the software, one can chose between 38400 or 4800 Baud data rate. Function activity is shown by 8 LED’s.  The easyTRX2S is able to interpret incoming AIS data for CPA alert or AIS S.A.R.T. emergency messages. Additionally, the easyTRX2S devices can be used as power source for external alerting devices. All received and transmitted AIS data can be stored with internal SD Card recorder. With the build-in multiplexer input 3 devices with different baud rate can be plugged to the easyTRX2S units. At least the external cable harness gives the possibility for outsourcing functionally like “change into silent mode ” or “PAN PAN emergency call” by switch.

The integrated GPS antenna is the new part of this AIS transceiver unit. This reduces the need of an external GPS antenna mounted on deck if the easyTRX2-iGPS-N2K-WiFi is going to be used in Polyester boats.

For stainless steel vessels this unit is not useful. Here you have to connect a separate GPS antenna to the unit. The integrated NMEA2000 Adapter enables to connect this AIS transceiver into the latest NMEA2000 network standard aboard.

With the wireless link to your mobile device, these data will promptly be received there as well.

Running the “easyAIS” App, you will see a radar screen appearing, showing all received AIS targets within range. A click on a target will prompt you detailed information to this specific target, such as ship’s name, speed and course over ground, etc. Additional information to your own boat’s navigational status like your own speed, course, wind, etc. are available through sub-menus of the App, if you feed the easyTRX2S-WiFi built-in multiplexer with boat information.

fully compatible with popular AIS navigational Apps for iPad®, iPhone® or iPod®, e.g.
– iNavX (charged) A new license for mobile device is mandatory.
– AIS Radar (charged)
– iPilot (charged)
fully compatible to charged Android-App iRegatta
fully compatible to Windows XP, Vista or Windows 7 (system running 32 bit)

What is needed to run the easyTRX2S-IGPS-N2K-WiFi?

The ClassB device needs to have its own GPS and VHF antennas. As an alternative you can run the easyTRX2S with the VHF antenna switch easySPLIT-OCB for using your existing VHF antenna. A separate GPS antenna is still needed. Another alternative is the VHF/GPS combi antenna.

easyTRX2S-IGPS-N2K-WiFi and gadgets that work together

Your PC has to work at least on WIN XP SP2 and screen resolution 1024*768 for configuration. Plotter or PC software have to be AIS compatible to display incoming AIS data on screen. A MMS number is required to broadcast data – you will get it from German “Bundesnetzagentur” or the competent authority on your country. Your distributor will program your easyTRX2S for that MMSI number. By means of the NMEA2000 adapter the unit can be connected to all devices running with this NMEA standard.

New WiFi function









40 clients at the same time by Multi-User-Connection AIS and Internet at the same time

AIS data by WiFi from easyTRX2S to a router with internet connection AIS data & internet available on all device´s connected to the router(e.g. WiFi from harbour, own 3G/4G hotspot aboard)











  • Integrated GPS antenna for polyesther boats
  • Integrated NMEA2000 adapter
  • Additional USB port for more connectivity
  • 38400 or 4800 Baud rate selection possible by software
  • 8 operating LEDs for more convenience
  • SD Card recorder for blackbox employment
  • Enlarged voltage input
  • Integrated multiplexer
  • Separate cable harness for “silent mode” or “PAN PAN” persistent signal
  • Plotter independent CPA alert
  • Plotter independent AIS S.A.R.T. alert
  • WiFi range of 30 m without any special antennas (depending on local conditions)
  • fully compatible with popular navigational software or Apps for iPhone or iPad





  • AIS receiver and transmitter with integrated GPS receiver
  • 1 transmitter, 2 receiver
  • Responsivity: -107dBm minimum, typically -112dBm
  • Data rate: 38400 or 4800 Baud, bi-directional
  • NMEA telegram type: VDM
  • WiFi maximum range: 100 m (in free air)
  • WiFi usual range: approx. 30 m without the use of any special antenna
  • maximum number of Wifi users: 1
  • Adapter VFH antenna: 50 Ohm, SO2239
  • Adapter GPS antenna: 50 Ohm, BNC
  • Integrated GPS antenna with built-in pre-amplifier
    • Type:                    Quadrifilar helix
    • Polarisation:          Right Hand Circular Polarized (RHCP)
    • 3dB beamwidth:     min 135°
    • Gain (zenith):        18dB
    • Noise figure:          0.8dB
  • Cabin mounting, IP60, -25°C – 55°C
  • Dimensions: 198mm (L) 158mm (W) 47mm (H)
  • Weight: approx. 275 grams

  • Integrated GPS antenna for polyester boats
  • Integrated NMEA2000 adapter
  • Integrated WiFi module
  • Plotter independent AIS S.A.R.T. alert
  • Plotter independent CPA alert
  • USB port
  • SD Card recorder
  • WiFi connection for more convenience in navigation

A148 easyTRX2S-IS

This product range is no longer produced.

All downloads, such as firmware, software and the manual can be found here under “Downloads”.

EAN

4260276741489



The ClassB unit easyTRX2S receives AIS ClassA and ClassB signals and transmits its own data according to ClassB standard.

Function

All the easyTRX2S series have a great variety of applications: You can connect it to a PC or laptop through a USB port. Using a software, you can choose the speed transmission between 38400 or 4800 Baud data rate. Function activity is shown by 8 LED’s.  The easyTRX2S is able to interpret incoming AIS data for CPA alert or AIS S.A.R.T. emergency messages. Additionally, the easyTRX2S devices can be used as power source for external alerting devices. All received and transmitted AIS data can be stored in and internal SD Card recorder. With the build-in multiplexer input, 3 devices with different baud rate can be plugged to the easyTRX2S units. The external cable gives the possibility to choose between “silent mode” or “PAN PAN emergency call”.

The integrated VHF antenna splitter enables to use an existing VHF for AIS and HF radio at the same time. Before the incoming signals are separated, the built-in pre-amplifier increases the signal strength to avoid physical loss.

What is needed to run the easyTRX2S-IS?

The Class B device needs a separate GPS antenna. Another alternative is the VHF/GPS combi antenna.

easyTRX2S-IS and gadgets that work together

Your PC has to work at least on WIN XP SP2 and screen resolution  1024*768 for configuration. Plotter or PC software have to be compatible with AIS to display incoming AIS data on the screen. A MMSI number is required to broadcast data – you will get it from German “Bundesnetzagentur” or the competent authority on your country. Your distributor will program your easyTRX2S for that MMSI number.







  • Additional USB port for more connectivity
  • 38400 or 4800 Baud rate selection possible by software
  • 8 operating LEDs for more convenience
  • SD Card recorder for blackbox employment
  • Enlarged voltage input
  • Integrated multiplexer
  • Separate cable harness for “silent mode” or “PAN PAN” persistent signal
  • Plotter independent CPA alert
  • Plotter independent AIS S.A.R.T. alert
  • Integrated VHF splitter with pre-amplifier





  • AIS receiver and transmitter with integrated GPS receiver
  • 1 transmitter, 2 receiver
  • Responsivity: -107dBm minimum, typically -112dBm
  • Data rate: 38400 or 4800 Baud, bi-directional
  • NMEA telegram type: VDM
  • Adapter VFH antenna: 50 Ohm, SO2239
  • Adapter GPS antenna: 50 Ohm, BNC
  • Cabin mounting, IP60, -25°C – 55°C
  • Dimensions: 198mm (L) 158mm (W) 47mm (H)
  • Weight: approx. 275 grams

  • VHF splitter with pre-amplifier
  • Plotter independent AIS S.A.R.T. alert
  • Plotter independent CPA alert
  • USB port
  • SD Card recorder

A043 easyAIS-IS

Running out mid/end 2017!
Service for this equipment continues!

<iframe style="overflow: hidden;" src="https://www.easyais.com/tools/running-out/" width="100%" height="130px" scrolling="no" sandbox="allow-same-origin allow-scripts allow-forms"></iframe>

Functionality:

The easyAIS receives the AIS VHF radio signals, actually most send by the commercial vessels (but also from an increasing figure of pleasure boaters). These signals are proceeded into a NMEA Signal which can be interpreted from the latest chart plotter or a PC software. The unit has got an integrated antenna – splitter and this makes the installation of the unit to the existing VHF antenna very easy. By means of the integrated splitter with integrated RF-signal amplifier physical losses are eliminated, which is unique in nowadays market.

What is necessary to use the easyAIS-IS Generation?

There is necessary the own existing VHF antenna and nothing more. The VHF Radio as well as the regular radio can be connected to the easyAIS-IS.

Which Chart plotter/PC software fits together with the easyAIS?

Most of the nowadays new chart plotters or PC software are capable to show AIS data on the screen.

  • 2 channel receiver to receive AIS data on 161,975 MHz and 162,025 MHz Class A and Class B
  • Sensitivity: -112 dBm (Therefore – 3 dBm better than the norm for Class A receivers)
  • Channel spacing: 25 kHz
  • Frequency selective antenna splitter with the possibility to connect to the easyAIS-IS:
    • VHF Antenna, 50 Ohm, SO239
    • VHF radio (IN/OUT): 50 Ohm, SO239
  • Regular radio: 50 Ohm, BNC for frequencies from app. 150 kHz to 110 MHz
  • Power: 9 v – 28 VDC, @ < 150 mA (Average of different modes)
  • NMEA 0183 output, message type VDM
  • USB output for direct connection to PC
  • Multiplex input for GPS data to pass through upconverted GPS data from 4800 Baud to 38400 Baud
  • Ambient conditions: under deck, 0° C to 60° C
  • 150 mm (l) x 150 mm (w) x 35 mm (h))
  • 2 channel AIS receiver with newest micro processor (ìP) technology
  • Highest sensitivity at optimized selectivity
  • Enlarged DC power input 9V – 28V
  • Integrated splitter with integrated RF-signal amplifier
  • Connection of the easyAIS-IS to the existing VHF antenna
  • moreover there can be connected: VHF Radio, Regular radio, long wave up to VHF
  • Article number A043

A153 easyTRX2S-IS-N2K

This product range is no longer produced.

All downloads, such as firmware, software and the manual can be found here under “Downloads”.

EAN

4260276741533



The ClassB unit easyTRX2S receives AIS ClassA and ClassB signals and transmits its own data according to ClassB standard.

Function

All the easyTRX2S series have a great variety of applications: You can connect it to a PC or laptop through a USB port. Using a software, you can choose the speed transmission between 38400 or 4800 Baud data rate. Function activity is shown by 8 LED’s.  The easyTRX2S is able to interpret incoming AIS data for CPA alert or AIS S.A.R.T. emergency messages. Additionally, the easyTRX2S devices can be used as power source for external alerting devices. All received and transmitted AIS data can be stored in and internal SD Card recorder. With the build-in multiplexer input, 3 devices with different baud rate can be plugged to the easyTRX2S units. The external cable gives the possibility to choose between “silent mode” or “PAN PAN emergency call”.

The integrated VHF antenna splitter enables to use an existing VHF for AIS and HF radio at the same time. Before the incoming signals are separated, the built-in pre-amplifier increases the signal strength to avoid physical loss.

The integrated NMEA2000 Adapter enables to connect this AIS transceiver into the latest NMEA2000 network standard aboard.

NMEA2000 is a new data form which enables to plug different devices in a row on the data stream. Each units takes his special data out of the stream. This is also called “BUS-system”.

Up to now devices communicated in data form NMEA0183. It was mandatory that all devices had to be connected directly with each other. With the new standard, the only thing to do is just to plug the unit into the NMEA2000 data stream.

All easyTRX2S devices with the appendix “N2K” do have an internal converter that is converting NMEA0183 into NMEA2000 and forwarding the new data form into the NMEA2000 network.

What is needed to run the easyTRX2S?

The Class B device needs a separate GPS antenna. As an alternative you can run the easyTRX2S with the VHF antenna switch easySPLIT-OCB for using your existing VHF antenna. A separate GPS antenna is still needed. Another alternative is the VHF/GPS combi antenna.

easyTRX2S and gadgets that fit together

Your PC has to work at least on WIN XP SP2 and screen resolution  1024*768 for configuration. Plotter or PC software have to be compatible with AIS to display incoming AIS data on the screen. A MMSI number is required to broadcast data – you will get it from German “Bundesnetzagentur” or the competent authority on your country. Your distributor will program your easyTRX2S for that MMSI number.





  • Integrated VHF splitter with pre-amplifier
  • Integrated NMEA2000 adapter
  • Additional USB port for more connectivity
  • 38400 or 4800 Baud rate selection possible by software
  • 8 operating LEDs for more convenience
  • SD Card recorder for blackbox employment
  • Enlarged voltage input
  • Integrated multiplexer
  • Separate cable harness for “silent mode” or “PAN PAN” persistent signal
  • Plotter independent CPA alert
  • Plotter independent AIS S.A.R.T. alert



  • AIS receiver and transmitter with integrated GPS receiver
  • 1 transmitter, 2 receiver
  • Responsivity: -107dBm minimum, typically -112dBm
  • Data rate: 38400 or 4800 Baud, bi-directional
  • NMEA telegram type: VDM
  • Adapter VFH antenna: 50 Ohm, SO2239
  • Adapter GPS antenna: 50 Ohm, BNC
  • Cabin mounting, IP60, -25°C – 55°C
  • Dimensions: 198mm (L) 158mm (W) 47mm (H)
  • Weight: approx. 275 grams

  • Integrated NMEA2000 converter
  • Plotter independent AIS S.A.R.T. alert
  • Plotter independent CPA alert
  • USB port
  • SD Card recorder

A149 easyTRX2S-IS-WiFi

This product range is no longer produced.

All downloads, such as firmware, software and the manual can be found here under “Downloads”.

EAN

4260276741496



The ClassB unit easyTRX2S receives AIS ClassA and ClassB signals and transmits its own data according to ClassB standard.

Function

All the easyTRX2S devices have a great variety of applications: You can connect it to a PC or laptop through a USB port. Using a software, you can choose the speed transmission between 38400 or 4800 Baud data rate. Function activity is shown by 8 LED’s.  The easyTRX2S is able to interpret incoming AIS data for CPA alert or AIS S.A.R.T. emergency messages. Additionally, the easyTRX2S devices can be used as power source for external alerting devices. All received and transmitted AIS data can be stored in and internal SD Card recorder. With the build-in multiplexer input, 3 devices with different baud rate can be plugged to the easyTRX2S units. The external cable gives the possibility to choose between “silent mode” or “PAN PAN emergency call”.

The integrated VHF antenna splitter enables to use an existing VHF for AIS and HF radio at the same time. Before the incoming signals are separated, the built-in pre-amplifier increases the signal strength to avoid physical loss.

The easyTRX2S-IS-WiFi receives the incoming AIS data sent by commercial vessels (Class A) and pleasure boats (Class B). These telegrams are processed into a NMEA protocol which can be interpreted by chart plotters or PC software. With the wireless link to your mobile device, these data will promptly be received there as well.

The easyTRX2S-IS-WiFi transmits according the AIS-Class B standard all own AIS data like ship name, speed and course over ground, etc. to every AIS receiver or transceiver within its radio range. Using the easyTRXS2-IS-WiFi is the easiest way to make yourself visible to others, having all necessary information about your surrounding too.

Running the “easyAIS” App, you will see a radar screen appearing, showing all received AIS targets within range. A click on a target will prompt you detailed information to this specific target, such as ship’s name, speed and course over ground, etc. Additional information to your own boat’s navigational status like your own speed, course, wind, etc. are available through sub-menus of the App, if you feed the easyTRX2S-IS-WiFi built-in multiplexer with boat information.

fully compatible with popular AIS navigational Apps for iPad®, iPhone® or iPod®, e.g.
– iNavX (charged) A new license for mobile device is mandatory.
– AIS Radar (charged)
– iPilot (charged)
fully compatible to charged Android-App iRegatta
fully compatible to Windows XP, Vista or Windows 7 (system running 32 bit)

Weatherdock App easyAIS im AppleStoreWeatherdock App in GooglePlay
What is needed to run the easyTRX2S-IS-WiFi?
The ClassB device needs to have its own GPS and VHF antennas. As an alternative you can run the easyTRX2S with the VHF antenna switch easySPLIT-OCB for using your existing VHF antenna. A separate GPS antenna is still needed. Another alternative is the VHF/GPS combi antenna.

easyTRX2S and gadgets that fit together

Your PC has to work at least on WIN XP SP2 and screen resolution  1024*768 for configuration. Plotter or PC software have to be intermateable to AIS to display incoming AIS data on screen. A MMS number is required to broadcast data – you will get it from German “Bundesnetzagentur” or the competent authority on your country. Your distributor will program your easyTRX2S for that MMSI number.

New WiFi function

40 clients at the same time by Multi-User-Connection AIS and Internet at the same time

AIS data by WiFi from easyTRX2S to an router with internet connection AIS data & internet available on all device´s connected to the router(e.g. WiFi from harbour, own 3G/4G hotspot aboard)



  • Integrated VHF splitter with pre-amplifier
  • Integrated WiFi module
  • Additional USB port for more connectivity
  • 38400 or 4800 Baud rate selection possible by software
  • 8 operating LEDs for more convenience
  • SD Card recorder for blackbox employment
  • Enlarged voltage input
  • Integrated multiplexer
  • Separate cable harness for “silent mode” or “PAN PAN” persistent signal
  • Plotter independent CPA alert
  • Plotter independent AIS S.A.R.T. alert





  • AIS receiver and transmitter with integrated GPS receiver
  • 1 transmitter, 2 receiver
  • Responsivity: -107dBm minimum, typically -112dBm
  • Data rate: 38400 or 4800 Baud, bi-directional
  • NMEA telegram type: VDM
  • WiFi module
    • provides wireless TCP/IP, NMEA 0183 (34800 baud)
    • WiFi range of 30 m without any special antennas (depending on local conditions)
    • fully compatible with popular navigational software or Apps for iPhone or iPad
  • Adapter VFH antenna: 50 Ohm, SO2239
  • Adapter GPS antenna: 50 Ohm, BNC
  • Cabin mounting, IP60, -25°C – 55°C
  • Dimensions: 198mm (L) 158mm (W) 47mm (H)
  • Weight: approx. 275 grams
  • Integrated WiFi module
  • Integrated VHF splitter
  • Plotter independent AIS S.A.R.T. alert
  • Plotter independent CPA alert
  • USB port
  • SD Card recorder

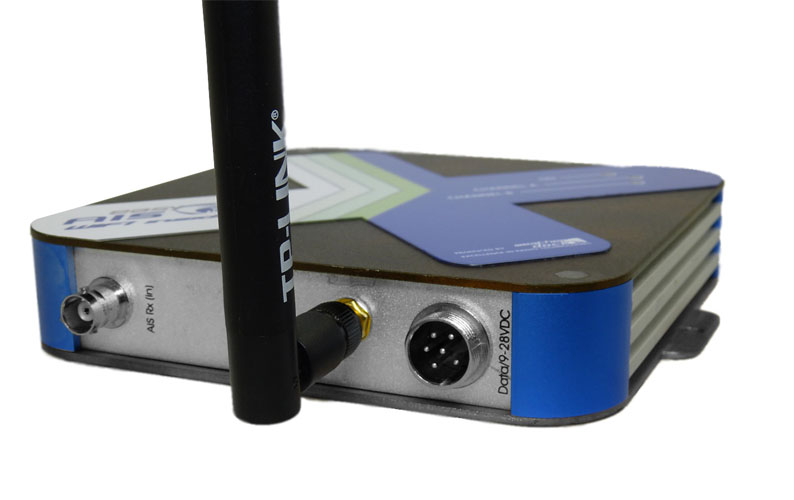

A071 easyAIS-WiFi

Running out mid/end 2017!
Service for this equipment continues!

<iframe style="overflow: hidden;" src="https://www.easyais.com/tools/running-out/" width="100%" height="130px" scrolling="no" sandbox="allow-same-origin allow-scripts allow-forms"></iframe>

Weatherdock WiFi products are a quantum jump regarding the simplification of data use aboard. With the built-in WiFi module, an additional navigation place is created on your boat. Received AIS data are wirelessly linked to your mobile device. The latter can be a smartphone, tablet PC , iPhone or iPad.

To visualize data on your mobile device, Weatherdock offers a free App named “easyAIS”, which is available for download through the Apple store.

In case you are running a mobile device with lower screen resolution, we still recommend to use a suitable plotter with appropriate resolution for your safety.

Function:

The easyAIS-WiFi receives the incoming AIS data sent by commercial vessels (Class A) and pleasure boats (Class B). These telegrams are processed into a NMEA protocol which can be interpreted by chart plotters or PC software. With the wireless link to your mobile device, these data will be promptly received there as well.

Running the “easyAIS” app, you will see a radar screen appearing, showing allreceived AIS targets within range. A click on a target will prompt you detailed information to this specific target, such as ship’s name, speed and course over ground, etc. Additional information to your own boat’s navigational status like your own speed, course, wind, etc. are available through sub-menues of the App, if you feed the easyAIS-WiFi built-in multiplexer with boat information.

  • fully compatible with popular AIS navigational Apps for iPad®, iPhone® or iPod®, e.g.
  • – iNavX (charged) A new license for mobile device is mandatory.
  • – AIS Radar (charged)
  • – iPilot (charged)
  • fully compatible to charged Android-App iRegatta
  • fully compatible to Windows XP, Vista or Windows 7 (system running 32 bit)

What is necessary to use the easyAIS_Wifi?

Required is an AIS compatible chart plotter or PC software and an own VHF antenna. As an alternative you can use a VHF/AIS antenna splitter like the easySPLIT to use the already existing VHF antenna for both, the VHF radio communication and the AIS reception.
The mobile device has to have AIS compatible software or App too.

AIS-App is now available in Appstore!

  • integrated Wifi module
  • provides wireless TCP/IP, NMEA 0183 (34800 baud)
  • NMEA input with multiplexer function for GPS and other boat instrument data
  • WiFi range of 30 m without any special antennas (depending on local conditions)
  • fully compatible with popular navigational software or Apps for iPhone or iPad

AIS receiver

  • dual chanel receiver on 161,975 MHz and 162,025 MHz
  • 25 kHz chanel spacing
  • -112 dBm RX sensitivity

Requirements for the DC supply

  • 9 V – 28 VDC
  • 250 mA

NMEA input

  • multiplexes NMEA data at a data rate of 4800 baud with internal AIS data

NMEA output

  • NMEA 0183 (34800 baud)
  • NMEA message type: VDM

WiFi

  • maximum range: 100 m (in free air)
  • usual range: approx. 30 m without the use of any special antenna
  • maximum number of WiFi users: 1

Antennas

  • connection to existing VHF antenna required
  • Wifi antenna supplied

integrated WiFi module
provides wireless TCP/IP, NMEA 0183 (34800 baud)
NMEA input with multiplexer function for GPS and other boat intrument data
WiFi range of 30 m without any special antennas (depending on local conditions)

fully compatible with popular AIS navigational Apps for iPad®, iPhone® or iPod®, e.g.

  • iNavX (charged) A new license for mobile device is mandatory.
  • AIS Radar (charged)
  • iPilot (charged)

fully compatible to charged Android-App iRegatta
fully compatible to Windows XP, Vista or Windows 7 (system running 32 bit)

A156 easyTRX2S-IS-N2K-WiFi

This product range is no longer produced.

All downloads, such as firmware, software and the manual can be found here under “Downloads”.

EAN

4260276741564

The ClassB unit easyTRX2S receives AIS ClassA and ClassB signals and transmits its own data according to ClassB standard.

Function

All the easyTRX2S series have a great variety of applications: You can connect it to a PC or laptop through a USB port. Using a software, you can choose the speed transmission between 38400 or 4800 Baud data rate. Function activity is shown by 8 LED’s.  The easyTRX2S is able to interpret incoming AIS data for CPA alert or AIS S.A.R.T. emergency messages. Additionally, the easyTRX2S devices can be used as power source for external alerting devices. All received and transmitted AIS data can be stored in and internal SD Card recorder. With the build-in multiplexer input, 3 devices with different baud rate can be plugged to the easyTRX2S units. The external cable gives the possibility to choose between “silent mode” or “PAN PAN emergency call”.

The integrated VHF antenna splitter enables to use an existing VHF for AIS and HF radio at the same time. Before the incoming signals are separated, the built-in pre-amplifier increases the signal strength to avoid physical loss.

The integrated NMEA2000 Adapter enables to connect this AIS transceiver into the latest NMEA2000 network standard aboard.

NMEA2000 is a new data form which enables to plug different devices in a row on the data stream. Each units takes his special data out of the stream. This is also called “BUS-system”.

Up to now devices communicated in data form NMEA0183. It was mandatory that all devices had to be connected directly with each other. With the new standard, the only thing to do is just to plug the unit into the NMEA2000 data stream.

All easyTRX2S devices with the appendix “N2K” do have an internal converter that is converting NMEA0183 into NMEA2000 and forwarding the new data form into the NMEA2000 network.

The easyTRX2S-WiFi receives the incoming AIS data sent by commercial vessels (Class A) and pleasure boats (Class B). These telegrams are processed into a NMEA protocol which can be interpreted by chart plotters or PC software. With the wireless link to your mobile device, these data will promptly be received there as well.

The easyTRX2S-WiFi transmits according the AIS-Class B standard all own AIS data like ship name, speed and course over ground, etc. to every AIS receiver or transceiver within its radio range. Using the easyTRXS2-WiFi is the simplest way to make yourself visible to others, having all necessary information about your surrounding too.

Running the “easyAIS” App, you will see a radar screen appearing, showing all received AIS targets within range. A click on a target will provide you detailed information about this specific target, such as ship’s name, speed and course over ground, etc. Additional information about your own boat’s navigational status like your own speed, course, wind, etc. are available through sub-menus of the App, if you feed the easyTRX2S-WiFi built-in multiplexer with boat information.

fully compatible with popular AIS navigational Apps for iPad®, iPhone® or iPod®, e.g.
– iNavX (charged) A new license for mobile device is mandatory.
– AIS Radar (charged)
– iPilot (charged)
fully compatible to charged Android-App iRegatta
fully compatible to Windows XP, Vista or Windows 7 (system running 32 bit)

Weatherdock App easyAIS im AppleStoreWeatherdock App in GooglePlay
What is needed to run the easyTRX2S?

The Class B device needs a separate GPS antenna and an own VHF antenna. As an alternative you can run the easyTRX2S with the VHF antenna switch easySPLIT-OCB to use your existing VHF antenna. A separate GPS antenna is still needed. Another alternative is the VHF/GPS combi antenna.

easyTRX2S and gadgets that fit together

Your PC has to work at least on WIN XP SP2 and screen resolution  1024*768 for configuration. Plotter or PC software have to be compatible with AIS to display incoming AIS data on the screen. A MMSI number is required to broadcast data – you will get it from German “Bundesnetzagentur” or the competent authority on your country. Your distributor will program this number on your easyTRX2S.

New WiFi function



40 clients at the same time by Multi-User-Connection AIS and Internet at the same time

AIS data by WiFi from easyTRX2S to an router with internet connection AIS data & internet available on all device´s connected to the router(e.g. WiFi from harbour, own 3G/4G hotspot aboard)



  • Integrated VHF splitter with pre-amplifier
  • Integrated WiFi module
  • Integrated NMEA2000 converter
  • Additional USB port for more connectivity
  • 38400 or 4800 Baud rate selection possible by software
  • 8 operating LEDs for more convenience
  • SD Card recorder for blackbox employment
  • Enlarged voltage input
  • Integrated multiplexer
  • Separate cable harness for “silent mode” or “PAN PAN” persistent signal
  • Plotter independent CPA alert
  • Plotter independent AIS S.A.R.T. alert

  • AIS receiver and transmitter with integrated GPS receiver
  • 1 transmitter, 2 receiver
  • Responsivity: -107dBm minimum, typically -112dBm
  • Data rate: 38400 or 4800 Baud, bi-directional
  • NMEA telegram type: VDM
  • Adapter VFH antenna: 50 Ohm, SO2239
  • Adapter GPS antenna: 50 Ohm, BNC
  • Cabin mounting, IP60, -25°C – 55°C
  • Dimensions: 198mm (L) 158mm (W) 47mm (H)
  • Weight: approx. 275 grams
  • integrated WiFi module
    • provides wireless TCP/IP, NMEA 0183 (34800 baud)
    • NMEA input with multiplexer function for other boat intrument data
    • WiFi range of 30 m without any special antennas (depending on local conditions)
    • fully compatible with popular navigational software or Apps for iPhone or iPad

  • Integrated NMEA2000 adapter
  • Integrated WiFi module
  • Integrated VHF antenna splitter
  • Plotter independent AIS S.A.R.T. alert
  • Plotter independent CPA alert
  • USB port
  • SD Card recorder

A059 easyAIS-IS-WiFi

Running out mid/end 2017!
Service for this equipment continues!

<iframe style="overflow: hidden;" src="https://www.easyais.com/tools/running-out/" width="100%" height="130px" scrolling="no" sandbox="allow-same-origin allow-scripts allow-forms"></iframe>

AIS goes mobile for more convenience aboard!

Weatherdock WiFi products are a quantum jump regarding the simplification of data use aboard. With the built-in WiFi module, an additional navigation place is created on your boat. Received AIS data are wirelessly linked to your mobile device. The latter can be a smartphone, tablet PC , iPhone or iPad.

To visualize data on your mobile device, Weatherdock offers a free App named “easyAIS”, which is available for download through the Apple store.

In case you are running a mobile device with lower screen resolution, we still recommand to use a suitable plotter with appropriate resolution for your safety.

Function:

The easyAIS-IS_WiFi receives the incoming AIS data sent by commercial vessels (Class A) and pleasure boats (Class B). These telegrams are processed into a NMEA protocol which can be interpreted by chart plotters or PC software. With the wireless link to your mobile device, these data will be promptly received there as well. The integrated antenna splitter allows you to share the existing VHF aerial for both, the VHF radio communication and the AIS reception.

Running the “easyAIS” app, you will see a radar screen appearing, showing all received AIS targets within range. A click on a target will prompt you detailed information to this specific target, such as ship’s name, speed and course over ground, etc.

fully compatible with popular AIS navigational Apps for iPad®, iPhone® or iPod®, e.g.
– iNavX (charged) A new license for mobile device is mandatory.
– AIS Radar (charged)
– iPilot (charged)
fully compatible to charged Android-App iRegatta
fully compatible to Windows XP, Vista or Windows 7 (system running 32 bit)

What is necessary to use the easyAIS-IS_Wifi?

Required is an AIS compatible chart plotter or PC software. The mobile device has to have AIS compatible software or App too.

AIS-App is now available in Appstore!
Also available for Android now!

  • integrated Wifi module
  • provides wireless TCP/IP, NMEA 0183 (34800 baud)
  • WiFi range of 30 m without any special antennas (depending on local conditions)
  • fully compatible with popular navigational software or Apps for iPhone or iPad
  • integrated VHF/AIS antenna splitter

AIS receiver

  • dual channel receiver on 161,975 MHz and 162,025 MHz
  • 25 kHz channel spacing
  • -112 dBm receiver sensitivity

Requirements for the DC supply

  • 9 V – 28 VDC
  • 350 mA

NMEA input

  • multiplexes GPS NMEA data at 4800 Baud with the internally processed AIS data

NMEA output

  • NMEA 0183 (34800 baud)
  • NMEA message type: VDM

PC connection

  • USB (driver supplied)
  • compatible to Windows, Linux and Mac

WiFi

  • maximum range: 100 m (in free air)
  • usual range: approx. 30 m without the use of any special antenna
  • maximum number of Wifi users: 1

Antennas

  • connection to existing VHF antenna required
  • WiFi antenna supplied

integrated WiFi module
provides wireless TCP/IP, NMEA 0183 (34800 baud)
WiFi range of 30 m without any special antennas (depending on local conditions)
fully compatible with popular navigational software or Apps for iPhone or iPad
integrated VHF/AIS antenna splitter

fully compatible with popular AIS navigational Apps for iPad®, iPhone® or iPod®, e.g.
– iNavX (charged) A new license for mobile device is mandatory.
– AIS Radar (charged)
– iPilot (charged)
fully compatible to charged Android-App iRegatta
fully compatible to Windows XP, Vista or Windows 7 (system running 32 bit)

A150 easyTRX2S-IS-IGPS

This product range is no longer produced.

All downloads, such as firmware, software and the manual can be found here under “Downloads”.

EAN

4260276741502

The ClassB unit easyTRX2S receives AIS ClassA and ClassB signals and transmits its own data according to ClassB standard.

Function

All the easyTRX2S series have a great variety of applications: You can connect it to a PC or laptop through a USB port. Using a software, you can choose the speed transmission between 38400 or 4800 Baud data rate. Function activity is shown by 8 LED’s.  The easyTRX2S is able to interpret incoming AIS data for CPA alert or AIS S.A.R.T. emergency messages. Additionally, the easyTRX2S devices can be used as power source for external alerting devices. All received and transmitted AIS data can be stored in and internal SD Card recorder. With the build-in multiplexer input, 3 devices with different baud rate can be plugged to the easyTRX2S units. The external cable gives the possibility to choose between “silent mode” or “PAN PAN emergency call”.

The integrated VHF antenna splitter enables to use an existing VHF for AIS and HF radio at the same time. Before the incoming signals are separated, the built-in pre-amplifier increases the signal strength to avoid physical loss.

The integrated GPS antenna is the new part of this AIS transceiver unit. This reduces the need of an external GPS antenna mounted on deck if the easyTRX2-iGPS is going to be used on Polyester boats.

For stainless steel vessels this unit is not useful. Here you have to connect a separate GPS antenna to the unit.

The easyTRX2S units with the appendix “IGPS” contain an integrated GPS antenna with 50 channel receiver. These units are designed to be used on polyester boats because there is no GPS interference. The ClassB can be mounted under deck but above sea level.

By means of this integrated GPS antenna a separate mounted external GPS antenna is no longer needed.

With Stainless steel boats as well as Kevlar and aluminum boats these units cannot be used. In such cases an external separate GPS antenna for the ClassB unit is mandatory.

What is needed to run the easyTRX2S?

The Class B device needs a separate GPS antenna and an own VHF antenna. As an alternative you can run the easyTRX2S with the VHF antenna switch easySPLIT-OCB to use your existing VHF antenna. A separate GPS antenna is still needed. Another alternative is the VHF/GPS combi antenna.

easyTRX2S and gadgets that fit together

Your PC has to work at least on WIN XP SP2 and screen resolution  1024*768 for configuration. Plotter or PC software have to be compatible with AIS to display incoming AIS data on the screen. A MMSI number is required to broadcast data – you will get it from German “Bundesnetzagentur” or the competent authority on your country. Your distributor will program this number on your easyTRX2S.

  • Integrated VHF splitter with pre-amplifier
  • Integrated GPS antenna for polyester boats
  • Additional USB port for more connectivity
  • 38400 or 4800 Baud rate selection possible by software
  • 8 operating LEDs for more convenience
  • SD Card recorder for blackbox employment
  • Enlarged voltage input
  • Integrated multiplexer
  • Separate cable harness for “silent mode” or “PAN PAN” persistent signal
  • Plotter independent CPA alert
  • Plotter independent AIS S.A.R.T. alert

  • AIS receiver and transmitter with integrated GPS receiver
  • 1 transmitter, 2 receiver
  • Responsivity: -107dBm minimum, typically -112dBm
  • Data rate: 38400 or 4800 Baud, bi-directional
  • NMEA telegram type: VDM
  • Adapter VFH antenna: 50 Ohm, SO2239
  • Adapter GPS antenna: 50 Ohm, BNC
  • Cabin mounting, IP60, -25°C – 55°C
  • Dimensions: 198mm (L) 158mm (W) 47mm (H)
  • Weight: approx. 275 grams

  • Integrated GPS antenna with 50-channel receiver
  • USB port
  • 38400 or 4800 baud selectable via software
  • Plotter independent CPA alert
  • SD Card recorder
  • Integrierter Multiplexer

A170 easyTRX2S-IS-IDVBT-N2K

This product range is no longer produced.

All downloads, such as firmware, software and the manual can be found here under “Downloads”.

EAN

4260276741700



The ClassB unit easyTRX2S receives AIS ClassA and ClassB signals and transmits its own data according to ClassB standard.

Function

All the easyTRX2S series have a great variety of applications: You can connect it to a PC or laptop through a USB port. Using a software, you can choose the speed transmission between 38400 or 4800 Baud data rate. Function activity is shown by 8 LED’s.  The easyTRX2S is able to interpret incoming AIS data for CPA alert or AIS S.A.R.T. emergency messages. Additionally, the easyTRX2S devices can be used as power source for external alerting devices. All received and transmitted AIS data can be stored in and internal SD Card recorder. With the build-in multiplexer input, 3 devices with different baud rate can be plugged to the easyTRX2S units. The external cable gives the possibility to choose between “silent mode” or “PAN PAN emergency call”.

The integrated VHF antenna splitter enables to use an existing VHF for AIS and HF radio at the same time. Before the incoming signals are separated, the built-in pre-amplifier increases the signal strength to avoid physical loss.

DVB-T enables to watch TV nearly wherever you want. Create your own sports bar aboard. By means of an internal antenna switched on the easyTRX2S unit with the appendix “DVB-T”, the VHF marine band is divided for the different applications. TV signals within the marine band are separated, pre-amplified and forwarded to your digital TV receiver. This receiver will decode the signal and pass it to your TV set.

The integrated NMEA2000 Adapter enables to connect this AIS transceiver into the latest NMEA2000 network standard aboard.

NMEA2000 is a new data form which enables to plug different devices in a row on the data stream. Each units takes his special data out of the stream. This is also called “BUS-system”.

Up to now devices communicated in data form NMEA0183. It was mandatory that all devices had been connected directly with each other. With the new standard just plugging the unit into the NMEA2000 data stream is the only thing you have to do.

All easyTRX2S devices with the appendix “N2K” do have an internal converter who is doing NMEA0183 into NMEA2000 and forwarding the new data form into the NMEA2000 network.

What is needed to run the easyTRX2S?

The ClassB device needs a separate GPS antenna and its own VHF antenna. As an alternative you can run the easyTRX2S with the VHF antenna switch easySPLIT-OCB. A separate GPS antenna is still needed. Another alternative is the VHF/GPS combi antenna.

easyTRX2S and gadgets that work together

Your PC has to work at least on WIN XP SP2 and screen resolution 1024*768. Plotter or PC software have to be AIS compatible in order to display incoming AIS data on the screen. A MMSI number is required to broadcast data.  You will get it from German Bundesamts fur Seeschifffahrt und Hydrographie or the competent authority on your country. Your distributor will set up this MMSI on your device.





  • Integrated VHF splitter with pre-amplifier
  • Integrated NMEA2000 adapter
  • Integrated DVBT antenna switch
  • Additional USB port for more connectivity
  • 38400 or 4800 Baud rate selection possible by software
  • 8 operating LEDs for more convenience
  • SD Card recorder for blackbox employment
  • Enlarged voltage input
  • Integrated multiplexer
  • Separate cable harness for “silent mode” or “PAN PAN” persistent signal
  • Plotter independent CPA alert
  • Plotter independent AIS S.A.R.T. alert





  • AIS receiver and transmitter with integrated GPS receiver
  • 1 transmitter, 2 receiver
  • Responsivity: -107dBm minimum, typically -112dBm
  • Data rate: 38400 or 4800 Baud, bi-directional
  • NMEA telegram type: VDM
  • Adapter VFH antenna: 50 Ohm, SO2239
  • Adapter GPS antenna: 50 Ohm, BNC
  • Cabin mounting, IP60, -25°C – 55°C
  • Dimensions: 198mm (L) 158mm (W) 47mm (H)
  • Weight: approx. 275 grams

  • Integrated NMEA2000 adapter
  • Integrated DVBT antenna switch
  • Plotter independent AIS S.A.R.T. alert
  • Plotter independent CPA alert
  • USB port
  • SD Card recorder

A157 easyTRX2S-IS-IGPS-N2K-DVBT

This product range is no longer produced.

All downloads, such as firmware, software and the manual can be found here under “Downloads”.

EAN

4260276741571

The ClassB unit easyTRX2S receives AIS ClassA and ClassB signals and transmits own data according to ClassB standard.

Function

All devices of the easyTRX2S series are performing with a lot of useful features:
By means of USB port connection to PC or Laptop is possible. With contained software it can be chosen between 38400 or 4800 Baud data rate. Function activity is shown by 8 LED’s. The easyTRX2S is able to interpret incoming AIS data for CPA alert or AIS S.A.R.T. emergency messages. Additional the easyTRX2S devices can be used as power source for external alerting devices. All received and transmitted AIS data can be stored with internal SD Card recorder. With the build-in multiplexer input 3 devices with different baud rate can be plugged to the easyTRX2S units. At least the external cable harness gives the possibility for outsourcing functionally like “change into silent mode ” or “PAN PAN emergency call” by switch.

The integrated VHF antenna splitter enables to use an existing VHF for AIS and HF radio at the same time. Before the incoming signals are separated, the built-in pre-amplifier increases the signal strength to avoid physical loss.

The integrated GPS antenna is the new part of this AIS transceiver unit. This reduces the need of an external GPS antenna mounted on deck if the easyTRX2-iGPS-N2K-WiFi is going to be used in Polyester boats.
For stainless steel vessels this unit is not useful. Here you have to connect a separate GPS antenna to the unit.

The easyTRX2S units with the appendix “IGPS” contain a integrated GPS antenna with 50 channel receiver. These units are designed for the use on polyester boats because there is no GPS interference. The ClassB can be mounted under deck but above sea level.

By means of this integrated GPS antenna a separate mounted external GPS antenna is no longer needed.

With Stailness steel boats as well as kevlar and aluminum boats these units can not be used. In such cases an external separate GPS antenna for the ClassB unit is mandatory.

DVBT enables to watch TV nearly wherever you want. Create you own sports bar aboard. By means of an internal antenna switch in every easyTRX2S unit with the appendix “DVBT” the VHF marinaband is divided for the different applications. TV signals within the marinaband were separated, pre-amplified and forwarded to your digital TV receiver. This receiver will decode the signal and pass them to your TV set.

The integrated NMEA2000 Adapter enables to connect this AIS transceiver into the latest NMEA2000 network standard aboard.

NMEA2000 is a new data form which enables to plug different devices in a row on the data stream. Each units takes his special data out of the stream. This is also called “BUS-system”.

Up to now devices communicated in data form NMEA0183. It was mandatory that all devices had been connected directly with each other. With the new standard just plugging the unit into the NMEA2000 data stream is the only thing you have to do.

All easyTRX2S devices with the appendix “N2K” do have an internal converter who is doing NMEA0183 into NMEA2000 and forwarding the new dataform into the NMEA2000 network.

What is needed to run the easyTRX2S?

The ClassB device needs a separate GPS antenna and an own VHF antenna. As an alternative you can run the easyTRX2S with the VHF antenna switch easySPLIT-OCB for using your existing VHF antenna. A separate GPS antenna is still needed. An other alternative is the VHF/GPS combi antenna.

easyTRX2S and gadgets that fit together

Your PC has to work at least on WIN XP SP2 and screen resolution 1024*768 for configuration. Plotter or PC software have to be intermateable to AIS to display incoming AIS data on screen. A MMS number is required to broadcast data – you will get it from German “Bundesnetzagentur”. Your distributor will program your easyTRX2S for that MMSI number.

  • Integrated VHF splitter with pre-amplifier
  • Integrated GPS antenna
  • Integrated NMEA2000 adapter
  • Integrated DVBT antenna switch
  • Additional USP port for more connectivity
  • 38400 or 4800 Baud rate selection possible by software
  • 8 operating LEDs for more convenience
  • SD Card recorder for blackbox employment
  • Enlarged voltage input
  • Integrated multiplexer
  • Separate cable harness for “silent mode” or “PAN PAN” persistent signal
  • Plotter independent CPA alert
  • Plotter independent AIS S.A.R.T. alert

  • AIS receiver and transmitter with integrated GPS receiver
  • 1 transmitter, 2 receiver
  • Responsivity: -107dBm minimum, typically -112dBm
  • Data rate: 38400 or 4800 Baud, bi-directional
  • NMEA telegram type: VDM
  • Adapter VFH antenna: 50 Ohm, SO2239
  • Adapter GPS antenna: 50 Ohm, BNC
  • Cabin mounting, IP60, -25°C – 55°C
  • Dimensions: 198mm (L) 158mm (W) 47mm (H)
  • Weight: approx. 275 grams

  • Integrated GPS antenna
  • Integrated NMEA2000 adapter
  • Integrated DVBT antenna switch
  • Plotter independent AIS S.A.R.T. alert
  • Plotter independent CPA alert
  • USB port
  • SD Card recorder

A158 easyTRX2S-IS-IGPS-IDVBT-N2K-WiFi

This product range is no longer produced.

All downloads, such as firmware, software and the manual can be found here under “Downloads”.

EAN

4260276741588

The Class B unit easyTRX2S receives AIS Class A and Class B signals and transmits own data according to Class B standard.

Function

All devices of the easyTRX2S series are performing with a lot of useful features:
By means of USB port connection to PC or Laptop is possible. With contained software it can be chosen between 38400 or 4800 Baud data rate. Function activity is shown by 8 LED’s. The easyTRX2S is able to interpret incoming AIS data for CPA alert or AIS S.A.R.T. emergency messages. Additional the easyTRX2S devices can be used as power source for external alerting devices. All received and transmitted AIS data can be stored with internal SD Card recorder. With the build-in multiplexer input 3 devices with different baud rate can be plugged to the easyTRX2S units. At least the external cable harness gives the possibility for outsourcing functionally like “change into silent mode ” or “PAN PAN emergency call” by switch.

The integrated VHF antenna splitter enables to use an existing VHF for AIS and HF radio at the same time. Before the incoming signals are separated, the built-in pre-amplifier increases the signal strength to avoid physical loss.

The integrated GPS antenna is the new part of this AIS transceiver unit. This reduces the need of an external GPS antenna mounted on deck if the easyTRX2-iGPS-N2K-WiFi is going to be used in Polyester boats.
For stainless steel vessels this unit is not useful. Here you have to connect a separate GPS antenna to the unit.

The easyTRX2S units with the appendix “IGPS” contain a integrated GPS antenna with 50 channel receiver. These units are designed for the use on polyester boats because there is no GPS interference. The Class B can be mounted under deck but above sea level.

By means of this integrated GPS antenna a separate mounted external GPS antenna is no longer needed.

With Stainless steel boats as well as Kevlar and aluminum boats these units can not be used. In such cases an external separate GPS antenna for the Class B unit is mandatory.

The easyTRX2S-WiFi receives the incoming AIS data sent by commercial vessels (Class A) and pleasure boats (Class B). These telegrams are processed into a NMEA protocol which can be interpreted by chart plotters or PC software. With the wireless link to your mobile device, these data will promptly be received there as well.

The easyTRX2S-WiFi transmits according the AIS-Class B standard all own AIS data like ship name, speed and course over ground, etc. to every AIS receiver or transceiver within its radio range. Using the easyTRXS2-WiFi is the simplest way to make yourself visible to others, having all necessary information about your surrounding too.

Running the “easyAIS” App, you will see a radar screen appearing, showing all received AIS targets within range. A click on a target will prompt you detailed information to this specific target, such as ship’s name, speed and course over ground, etc. Additional information to your own boat’s navigational status like your own speed, course, wind, etc. are available through sub-menus of the App, if you feed the easyTRX2S-WiFi built-in multiplexer with boat information.

fully compatible with popular AIS navigational Apps for iPad®, iPhone® or iPod®, e.g.
– iNavX (charged) A new license for mobile device is mandatory.
– AIS Radar (charged)
– iPilot (charged)
fully compatible to charged Android-App iRegatta
fully compatible to Windows XP, Vista or Windows 7 (system running 32 bit)

Weatherdock App easyAIS im AppleStoreWeatherdock App in GooglePlay
DVBT enables to watch TV nearly wherever you want. Create you own sports bar aboard. By means of an internal antenna switch in every easyTRX2S unit with the appendix “DVBT” the VHF marina band is divided for the different applications. TV signals within the marina band were separated, pre-amplified and forwarded to your digital TV receiver. This receiver will decode the signal and pass them to your TV set.

The integrated NMEA2000 Adapter enables to connect this AIS transceiver into the latest NMEA2000 network standard aboard.

NMEA2000 is a new data form which enables to plug different devices in a row on the data stream. Each units takes his special data out of the stream. This is also called “BUS-system”.

Up to now devices communicated in data form NMEA0183. It was mandatory that all devices had been connected directly with each other. With the new standard just plugging the unit into the NMEA2000 data stream is the only thing you have to do.

All easyTRX2S devices with the appendix “N2K” do have an internal converter who is doing NMEA0183 into NMEA2000 and forwarding the new data form into the NMEA2000 network.

What is needed to run the easyTRX2S?

The ClassB device needs a separate GPS antenna and an own VHF antenna. As an alternative you can run the easyTRX2S with the VHF antenna switch easySPLIT-OCB for using your existing VHF antenna. A separate GPS antenna is still needed. An other alternative is the VHF/GPS combi antenna.easyTRX2S and gadgets that fit together
Your PC has to work at least on WIN XP SP2 and screen resolution 1024*768 for configuration. Plotter or PC software have to be intermateable to AIS to display incoming AIS data on screen. A MMS number is required to broadcast data – you will get it from German “Bundesnetzagentur”. Your distributor will program your easyTRX2S for that MMSI number.

New WiFi function

40 clients at the same time by Multi-User-Connection AIS and Internet at the same time

  • AIS data by WiFi from easyTRX2S to an router with internet connection
  • AIS data & internet available on all device´s connected to the router(e.g. WiFi from harbor, own 3G/4G hotspot aboard)
  • Integrated VHF splitter with pre-amplifier
  • Integrated WiFi module
  • Integrated GPS antenna
  • Integrated NMEA2000 adapter
  • Integrated DVBT antenna switch
  • Additional USP port for more connectivity
  • 38400 or 4800 Baud rate selection possible by software
  • 8 operating LEDs for more convenience
  • SD Card recorder for blackbox employment
  • Enlarged voltage input
  • Integrated multiplexer
  • Separate cable harness for “silent mode” or “PAN PAN” persistent signal
  • Plotter independent CPA alert
  • Plotter independent AIS S.A.R.T. alert
  • AIS receiver and transmitter with integrated GPS receiver
  • 1 transmitter, 2 receiver
  • Responsivity: -107dBm minimum, typically -112dBm
  • Data rate: 38400 or 4800 Baud, bi-directional
  • NMEA telegram type: VDM
  • Adapter VFH antenna: 50 Ohm, SO2239
  • Adapter GPS antenna: 50 Ohm, BNC
  • Cabin mounting, IP60, -25°C – 55°C
  • Dimensions: 198mm (L) 158mm (W) 47mm (H)
  • Weight: approx. 275 grams
  • integrated WiFi module
    • provides wireless TCP/IP, NMEA 0183 (34800 baud)
    • NMEA input with multiplexer function for other boat instrument data
    • WiFi range of 30 m without any special antennas (depending on local conditions)
    • fully compatible with popular navigational software or Apps for iPhone or iPad
  • Integrated GPS antenna
  • Integrated NMEA2000 adapter
  • Integrated DVBT antenna switch
  • Integrated WiFI module
  • Plotter independent AIS S.A.R.T. alert
  • Plotter independent CPA alert
  • USB port
  • SD Card recorder

A152 easyTRX2S-IS-IDVBT

This product range is no longer produced.

All downloads, such as firmware, software and the manual can be found here under “Downloads”.

EAN

4260276741526

The ClassB unit easyTRX2S receives AIS ClassA and ClassB signals and transmits own data according to ClassB standard.

Function

All devices of the easyTRX2S series are performing with a lot of useful features:
By means of USB port connection to PC or Laptop is possible. With contained software it can be chosen between 38400 or 4800 Baud data rate. Function activity is shown by 8 LED’s.  The easyTRX2S is able to interpret incoming AIS data for CPA alert or AIS S.A.R.T. emergency messages. Additional the easyTRX2S devices can be used as power source for external alerting devices. All received and transmitted AIS data can be stored with internal SD Card recorder. With the build-in multiplexer input 3 devices with different baud rate can be plugged to the easyTRX2S units. At least the external cable harness gives the possibility for outsourcing functionally like “change into silent mode ” or “PAN PAN emergency call” by switch.

The integrated VHF antenna splitter enables to use an existing VHF for AIS and HF radio at the same time. Before the incoming signals are separated, the built-in pre-amplifier increases the signal strength to avoid physical loss.

DVBT enables to watch TV nearly wherever you want. Create you own sports bar aboard. By means of an internal antenna switch in every easyTRX2S unit with the appendix “DVBT”  the VHF marinaband is divided for the different applications. TV signals within the marinaband were seperated, pre-amplified and forwarded to your digital TV receiver. This receiver will decode the signal and pass them to your TV set.

What is needed to run the easyTRX2S?
The ClassB device needs a separate GPS antenna and an own VHF antenna. As an alternative you can run the easyTRX2S with the VHF antenna switch easySPLIT-OCB for using your existing VHF antenna. A separate GPS antenna is still needed. An other alternative is the VHF/GPS combi antenna.

easyTRX2S and gadgets that fit together
Your PC has to work at least on WIN XP SP2 and screen resolution  1024*768 for configuration. Plotter or PC software have to be intermateable to AIS to display incoming AIS data on screen. A MMS number is required to broadcast data – you will get it from German “Bundesnetzagentur”. Your distributor will program your easyTRX2S for that MMSI number.

  • Integrated VHF splitter with pre-amplifier
  • Integrated DVBT antenna switch
  • Additional USP port for more connectivity
  • 38400 or 4800 Baud rate selection possible by software
  • 8 operating LEDs for more convenience
  • SD Card recorder for blackbox employment
  • Enlarged voltage input
  • Integrated multiplexer
  • Separate cable harness for “silent mode” or “PAN PAN” persistent signal
  • Plotter independent CPA alert
  • Plotter indeoendent AIS S.A.R.T. alert

  • AIS receiver and transmitter with integrated GPS receiver
  • 1 transmitter, 2 receiver
  • Responsivity: -107dBm minimum, typically -112dBm
  • Data rate: 38400 or 4800 Baud, bi-directional
  • NMEA telegram type: VDM
  • Adapter VFH antenna: 50 Ohm, SO2239
  • Adapter GPS antenna: 50 Ohm, BNC
  • Cabin mounting, IP60, -25°C – 55°C
  • Dimensions: 198mm (L) 158mm (W) 47mm (H)
  • Weight: approx. 275 grams

  • DVBT receiver inside
  • Integrated VHF splitter
  • Plotter independent AIS S.A.R.T. alert
  • Plotter independent CPA alert
  • USB port
  • SD Card recorder

A105 easyAIS-IS-N2K

Running out mid/end 2017!
Service for this equipment continues!

<iframe style="overflow: hidden;" src="https://www.easyais.com/tools/running-out/" width="100%" height="130px" scrolling="no" sandbox="allow-same-origin allow-scripts allow-forms"></iframe>

The easyAIS-IS-N2K receives all AIS data send out on special VHF frequencies. Beside commercial vessels there is an increasing figure of pleasure boats using AIS technology to inform other vessels about their curse and speed over ground.

Take the “guess work” out of your navigation and see what’s going on around you. This will increase your safety level aboard.

Function

The easyAIS receives the AIS VHF radio signals, actually most send by the commercial vessels (but also from a increasing figure of pleasure boaters). This signals are proceeded into an NMEA Signal which can be interpreted from the latest chart plotter or a PC software. The unit has got an integrated splitter and this made the installation of the unit to the existing VHF antenna very easy.

By means of the integrated splitter with incoming signal amplifier physical losses are eliminated, which is unique in nowadays market.

New:

The integrated NMEA2000 Adapter is the new part of this AIS transceiver unit. This enables to connect this AIS transceiver into the latest NMEA2000 network standard aboard.

What is necessary to use the easyAIS-IS Generation?

There is necessary the own existing VHF antenna and nothing more.The VHF Radio as well as the regular radio can be connected to the easyAIS-IS.

Which Chart plotter/PC software fits together with the easyAIS?

Most of the nowadays new chart plotters or PC software are capable to show AIS data on the screen.

  • 2 channel AIS receiver with newest micro processor (μP) technology
  • Highest sensitivity at optimized selectivity
  • Enlarged DC power input 9v-28V
  • Integrated splitter with incoming signal amplifier
  • Connetion of the easyAIS-IS to the existing VHF antenna:
  • moreover there can be connected:

VHF Radio
Regular radio, short wave up to VHF wave

  • 2 channel receiver to receive AIS data on 161,975 MHz and 162,025 MHz Class A and Class B
  • Sensitivity: -112 dBm (Therefore – 3 dBm better than the norm for Class A receivers!!)
  • Channel spacing: 25 kHz
  • Frequency selective power divider with the possibility to connect to the easyAIS-IS:
    • VHF Antenna, 50 Ohm, SO239
    • VHF radio (IN/OUT): 50 Ohm, SO239
    • Regular radio: 50 Ohm, BNC for frequencies from app. 150kHz zo 110MHz
  • Power: 9 v – 28 VDC, @ < 150 mA (Average of different modes)
  • NMEA 0183 output, message type VDM
  • USB output for direct connection to PC
  • Multiplex input for GPS data to pass through upconverted GPS data from 4800 Baud to 38400 Baud
  • Ambient conditions: under deck, 0° C to 60° C
  • 150 mm (l) x 150 mm (w) x 35 mm (h)
  • Weight: app. 400 g
  • 2 Chanel AIS receiver
  • AIS data on chart plotter or PC screen
  • Integrated VHF splitter with preamplifier
  • Integrated NMEA2000 adapter
  • Easy installation by “plug’n’play”

A155 easyTRX2S-IS-IGPS-N2K

EAN

4260276741557

The ClassB unit easyTRX2S receives AIS ClassA and ClassB signals and transmits own data according to ClassB standard.

Function

All devices of the easyTRX2S series are performing with a lot of useful features:
By means of USB port connection to PC or Laptop is possible. With contained software it can be chosen between 38400 or 4800 Baud data rate. Function activity is shown by 8 LED’s.  The easyTRX2S is able to interpret incoming AIS data for CPA alert or AIS S.A.R.T. emergency messages. Additional the easyTRX2S devices can be used as power source for external alerting devices. All received and transmitted AIS data can be stored with internal SD Card recorder. With the build-in multiplexer input 3 devices with different baud rate can be plugged to the easyTRX2S units. At least the external cable harness gives the possibility for outsourcing functionally like “change into silent mode ” or “PAN PAN emergency call” by switch.

The integrated VHF antenna splitter enables to use an existing VHF for AIS and HF radio at the same time. Before the incoming signals are separated, the built-in pre-amplifier increases the signal strength to avoid physical loss.

The integrated GPS antenna is the new part of this AIS transceiver unit. This reduces the need of an external GPS antenna mounted on deck if the easyTRX2-iGPS-N2K-WiFi is going to be used in Polyester boats.
For stainless steel vessels this unit is not useful. Here you have to connect a separate GPS antenna to the unit.

The easyTRX2S units with the appendix “IGPS” contain a integrated GPS antenna with 50 chanel receiver. These units are designed for the use on polyester boats because there is no GPS interference. The ClassB can be mounted under deck but above sea level.

By means of this integrated GPS antenna a separate mounted external GPS antenna is no longer needed.

With Stainless steel boats as well as Kevlar and aluminum boats these units can not be used. In such cases an external separate GPS antenna for the ClassB unit is mandatory.

The integrated NMEA2000 Adapter enables to connect this AIS transceiver into the latest NMEA2000 network standard aboard.

NMEA2000 is a new data form which enables to plug different devices in a row on the data stream. Each units takes his special data out of the stream. This is also called “BUS-system”.

Up to now devices communicated in data form NMEA0183. It was mandatory that all devices had been connected directly with each other. With the new standard just plugging the unit into the NMEA2000 data stream is the only thing you have to do.

All easyTRX2S devices with the appendix “N2K” do have an internal converter who is doing NMEA0183 into NMEA2000 and forwarding the new data form into the NMEA2000 network.

What is needed to run the easyTRX2S?
The ClassB device needs a separate GPS antenna and an own VHF antenna. As an alternative you can run the easyTRX2S with the VHF antenna switch easySPLIT-OCB for using your existing VHF antenna. A separate GPS antenna is still needed. An other alternative is the VHF/GPS combi antenna.

easyTRX2S and gadgets that fit together
Your PC has to work at least on WIN XP SP2 and screen resolution  1024*768 for configuration. Plotter or PC software have to be intermateable to AIS to display incoming AIS data on screen. A MMS number is required to broadcast data – you will get it from German “Bundesnetzagentur”. Your distributor will program your easyTRX2S for that MMSI number.

  • Integrated VHF splitter with pre-amplifier
  • Integrated GPS antenna
  • Integrated NMEA2000 converter
  • Additional USP port for more connectivity
  • 38400 or 4800 Baud rate selection possible by software
  • 8 operating LEDs for more convenience
  • SD Card recorder for blackbox employment
  • Enlarged voltage input
  • Integrated multiplexer
  • Separate cable harness for “silent mode” or “PAN PAN” persistent signal
  • Plotter independent CPA alert
  • Plotter independent AIS S.A.R.T. alert

  • AIS receiver and transmitter with integrated GPS receiver
  • 1 transmitter, 2 receiver
  • Responsivity: -107dBm minimum, typically -112dBm
  • Data rate: 38400 or 4800 Baud, bi-directional
  • NMEA telegram type: VDM
  • Adapter VFH antenna: 50 Ohm, SO2239
  • Adapter GPS antenna: 50 Ohm, BNC
  • Cabin mounting, IP60, -25°C – 55°C
  • Dimensions: 198mm (L) 158mm (W) 47mm (H)
  • Weight: approx. 275 grams

  • Integrated GPS antenna
  • Integrated NMEA2000 converter
  • Plotter independent AIS S.A.R.T. alert
  • Plotter inependent CPA alert
  • USB port
  • SD Card recorder

A045 easyN2Konnect

The easyN2K converter enables to connect AIS devices with NMEA0183 into the latest NMEA2000 network standard.
Connecting networks – actual and new ones in harmony.

Function

Latest linked up data- and display-systems aboard yachts are running by means of a so-called NMEA2000 network. Data interchange between NMEA0183 and NMEA2000 is not possible without a converter. This is where the easyN2K comes into picture. The easyN2K is connected just between the AIS device running with NMEA0183 and the chartplotter or PC / Labtop running on NMEA2000. The unit “translates” the NMEA0183 data stream.

Requirements for the easyN2K?

Every AIS transponder or AIS receiver who sends out data via NMEA0183 standard can be connected to the easyN2K. The outgoing data can be interpreted and precessed by any suitable NMEA2000 device.
easyN2K and gadgets that fit together?

All you need is a NMEA2000 network and corresponding devices to display NMEA2000 data. The N2K is connected directly to the NMEA2000 network via the standardized NMEA2000 plug. The NMEA0183 device will be connected with the easyN2K via an ac-cording cable. No other wiring, concerning power supply, is required.

  • Provides connectivity of NMEA0183 AIS devices with a NMEA2000 network
  • Straightforward handling thanks to plug and play characteristics
  • NMEA0183 devices are power supplied by the easyN2K
  • Used plug types
  • NMEA0183: 6 pin microphone plug
  • NMEA2000: micro style plug
    o        NMEA0183 input:
  • Baud rate: 38400 Baud
    o        NMEA2000 compatible output:
  • power supply via NMEA2000 (9-26VDC)
  • Current consumption <30mA at 12V
  • Baud rate: 250 kBd

A151 easyTRX2S-IS-IGPS-WiFi

EAN

4260276741519

The ClassB unit easyTRX2S receives AIS ClassA and ClassB signals and transmits own data according to ClassB standard.

Function

All devices of the easyTRX2S series are performing with a lot of useful features:
By means of USB port connection to PC or Laptop is possible. With contained software it can be chosen between 38400 or 4800 Baud data rate. Function activity is shown by 8 LED’s.  The easyTRX2S is able to interpret incoming AIS data for CPA alert or AIS S.A.R.T. emergency messages. Additional the easyTRX2S devices can be used as power source for external alerting devices. All received and transmitted AIS data can be stored with internal SD Card recorder. With the build-in multiplexer input 3 devices with different baud rate can be pluged to the easyTRX2S units. At least the external cable harness gives the possibility for outsourcing functionaly like “change into silent mode ” or “PAN PAN emergency call” by switch.

The integrated VHF antenna splitter enables to use an existing VHF for AIS and HF radio at the same time. Before the incoming signals are separated, the built-in pre-amplifier increases the signal strength to avoid physical loss.
The integrated GPS antenna is the new part of this AIS transceiver unit. This reduces the need of an external GPS antenna mounted on deck if the easyTRX2-iGPS-N2K-WiFi is going to be used in Polyester boats.
For stainless steel vessels this unit is not useful. Here you have to connect a separate GPS antenna to the unit.The easyTRX2S units with the appendix “IGPS” contain a integrated GPS antenna with 50 channel receiver. These units are designed for the use on polyester boats because there is no GPS interference. The ClassB can be mounted under deck but above sea level.

By means of this integrated GPS antenna a separate mounted external GPS antenna is no longer needed.

With Stainless steel boats as well as Kevlar and aluminum boats these units can not be used. In such cases an external separate GPS antenna for the ClassB unit is mandatory.

The easyTRX2S-WiFi receives the incoming AIS data sent by commercial vessels (Class A) and pleasure boats (Class B). These telegrams are processed into a NMEA protocol which can be interpreted by chart plotters or PC software. With the wireless link to your mobile device, these data will promptly be received there as well.

The easyTRX2S-WiFi transmits according the AIS-Class B standard all own AIS data like ship name, speed and course over ground, etc. to every AIS receiver or transceiver within its radio range. Using the easyTRXS2-WiFi is the simpliest way to make yourself visible to others, having all necessary information about your surrounding too.

Running the “easyAIS” App, you will see a radar screen appearing, showing all received AIS targets within range. A click on a target will prompt you detailed information to this specific target, such as ship’s name, speed and course over ground, etc. Additional information to your own boat’s navigational status like your own speed, course, wind, etc. are available through sub-menues of the App, if you feed the easyTRX2S-WiFi built-in multiplexer with boat information.

fully compatible with popular AIS navigational Apps for iPad®, iPhone® or iPod®, e.g.
– iNavX (charged) A new license for mobile device is mandatory.
– AIS Radar (charged)
– iPilot (charged)
fully compatible to charged Android-App iRegatta
fully compatible to Windows XP, Vista or Windows 7 (system running 32 bit)

Weatherdock App easyAIS im AppleStoreWeatherdock App in GooglePlayWhat is needed to run the easyTRX2S?
The ClassB device needs a separate GPS antenna and an own VHF antenna. As an alternative you can run the easyTRX2S with the VHF antenna switch easySPLIT-OCB for using your existing VHF antenna. A separate GPS antenne is still needed. An other alternative is the VHF/GPS combi antenna.

easyTRX2S and gadgets that fit together
Your PC has to work at least on WIN XP SP2 and screen resolution  1024*768 for configuration. Plotter or PC software have to be intermateable to AIS to display incoming AIS data on screen. A MMS number is required to broadcast data – you will get it from German “Bundesnetzagentur”. Your distributor will program your easyTRX2S for that MMSI number.

New WiFi function

40 clients at the same time by Multi-User-Connection AIS and Internet at the same time

  • AIS data by WiFi from easyTRX2S to an router with internet connection AIS data & internet available on all device´s connected to the router(e.g. WiFi from harbour, own 3G/4G hotspot aboard)

  • Integrated VHF splitter with pre-amplifier
  • Integrated GPS antenna for polyestherboats
  • Integrated WiFi module
  • Additional USP port for more connectivity
  • 38400 or 4800 Baud rate selection possible by software
  • 8 operating LEDs for more convenience
  • SD Card recorder for blackbox employment
  • Enlarged voltage input
  • Integrated multiplexer
  • Separate cable harness for “silent mode” or “PAN PAN” persistent signal
  • Plotter independent CPA alert
  • Plotter independent AIS S.A.R.T. alert

  • AIS receiver and transmitter with integrated GPS receiver
  • 1 transmitter, 2 receiver
  • Responsivity: -107dBm minimum, typically -112dBm
  • Data rate: 38400 or 4800 Baud, bi-directional
  • NMEA telegram type: VDM
  • Adapter VFH antenna: 50 Ohm, SO2239
  • Adapter GPS antenna: 50 Ohm, BNC
  • Cabin mounting, IP60, -25°C – 55°C
  • Dimensions: 198mm (L) 158mm (W) 47mm (H)
  • Weight: approx. 275 grams
  • integrated WiFi module
    • provides wireless TCP/IP, NMEA 0183 (34800 baud)
    • NMEA input with multiplexer function for other boat intrument data
    • WiFi range of 30 m without any special antennas (depending on local conditions)
    • fully compatible with popular navigational software or Apps for iPhone or iPad

  • Integrated GPS antenna
  • Integrated WiFi module
  • Plotter independent AIS S.A.R.T. alert
  • Plotter independent CPA alert
  • USB port
  • SD Card recorder

A154 easyTRX2S-IS-IGPS-IDVBT

EAN

4260276741540

The ClassB unit easyTRX2S receives AIS ClassA and ClassB signals and transmits its own data according to ClassB standard.


Function

All the easyTRX2S series have a great variety of applications: You can connect it to a PC or laptop through a USB port. Using a software, you can choose the speed transmission between 38400 or 4800 Baud data rate. Function activity is shown by 8 LED’s.  The easyTRX2S is able to interpret incoming AIS data for CPA alert or AIS S.A.R.T. emergency messages. Additionally, the easyTRX2S devices can be used as power source for external alerting devices. All received and transmitted AIS data can be stored in and internal SD Card recorder. With the build-in multiplexer input, 3 devices with different baud rate can be plugged to the easyTRX2S units. The external cable gives the possibility to choose between “silent mode” or “PAN PAN emergency call”.

The integrated VHF antenna splitter enables to use an existing VHF for AIS and HF radio at the same time. Before the incoming signals are separated, the built-in pre-amplifier increases the signal strength to avoid physical loss.

The integrated GPS antenna is the new part of this AIS transceiver unit. This reduces the need of an external GPS antenna mounted on deck if the easyTRX2-iGPS-N2K-WiFi is going to be used on Polyester boats.

For stainless steel vessels this unit is not useful. Here you have to connect a separate GPS antenna to the unit.

The easyTRX2S units with the appendix “IGPS” contain an integrated GPS antenna with 50 channel receiver. These units are designed to be used on polyester boats because there is no GPS interference. The ClassB can be mounted under deck but above sea level.

By means of this integrated GPS antenna a separate mounted external GPS antenna is no longer needed.

With Stainless steel boats as well as Kevlar and aluminum boats these units cannot be used. In such cases an external separate GPS antenna for the ClassB unit is mandatory.

DVB-T enables to watch TV nearly wherever you want. Create your own sports bar aboard. By means of an internal antenna switched on the easyTRX2S unit with the appendix “DVB-T”, the VHF marine band is divided for the different applications. TV signals within the marine band are separated, pre-amplified and forwarded to your digital TV receiver. This receiver will decode the signal and pass it to your TV set.

What is needed to run the easyTRX2S?

The Class B device needs a separate GPS antenna and an own VHF antenna. As an alternative you can run the easyTRX2S with the VHF antenna switch easySPLIT-OCB to use your existing VHF antenna. A separate GPS antenna is still needed. Another alternative is the VHF/GPS combi antenna.

easyTRX2S and gadgets that work together

Your PC has to work at least on WIN XP SP2 and screen resolution  1024*768 for configuration. Plotter or PC software have to be compatible with AIS to display incoming AIS data on the screen. A MMSI number is required to broadcast data – you will get it from German “Bundesnetzagentur” or the competent authority on your country. Your distributor will program this number on your easyTRX2S.



  • Integrated VHF splitter with pre-amplifier
  • Integrated GPS antenna for Polyestherboats
  • Integrated DVBT antenna switch for TV reception
  • Additional USB port for more connectivity
  • 38400 or 4800 Baud rate selection possible by software
  • 8 operating LEDs for more convenience
  • SD Card recorder for blackbox employment
  • Enlarged voltage input
  • Integrated multiplexer
  • Separate cable harness for “silent mode” or “PAN PAN” persistent signal
  • Plotter independent CPA alert
  • Plotter independent AIS S.A.R.T. alert



  • AIS receiver and transmitter with integrated GPS receiver
  • 1 transmitter, 2 receiver
  • Responsivity: -107dBm minimum, typically -112dBm
  • Data rate: 38400 or 4800 Baud, bi-directional
  • NMEA telegram type: VDM
  • Adapter VFH antenna: 50 Ohm, SO2239
  • Adapter GPS antenna: 50 Ohm, BNC
  • Cabin mounting, IP60, -25°C – 55°C
  • Dimensions: 198mm (L) 158mm (W) 47mm (H)
  • Weight: approx. 275 grams

  • Integrated GPS antenna
  • Integrated DVBT antenna switch
  • Plotter independent AIS S.A.R.T. alert
  • Plotter inependent CPA alert
  • USB port
  • SD Card recorder

Software RACE-TRACK

Video 'Live on Tape'

Video 'Live on Screen'

WinGPS is a navigation software for sport boats that can run on standard Windows PCs and notebooks.

The software is available in three different versions: Navigator, Pro and Voyager.

From the „Pro„ version on, it is possible to display an AIS-object, among others, in a sea map with diverse information. Furthermore, it is possible to display traveled routes on a sea map on the basis of their  GPS Positions and play them back on a screen.
It is also possible to display more than one route at the same time and compare them with each other.

Displaying the routes is also possible with the free version WinGPS 5 Lite.

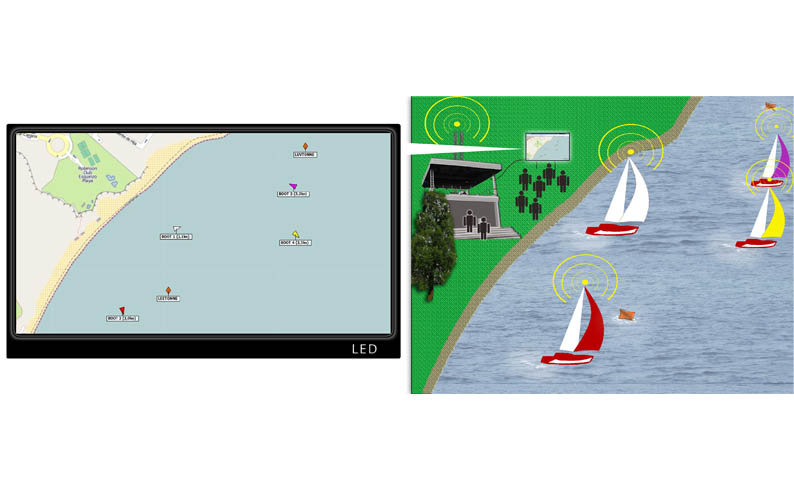

For the tracking of boats for observation purposes, or to present on screen regatta competitions, the software can be supplemented by a “race track” module.
The race-track module receives the AIS signals from boats, modifies and forwards them to the WinGPS software. This is an advanced feature, in addition to the “normal” AIS functions possible such as: representation of boat symbols in different colors, the course marker for the regatta represented  with special symbols,  displaying or concealing information about the boat depending on the object type. Furthermore, an additional module enables the constant logging and storing of the AIS positions of all objects.

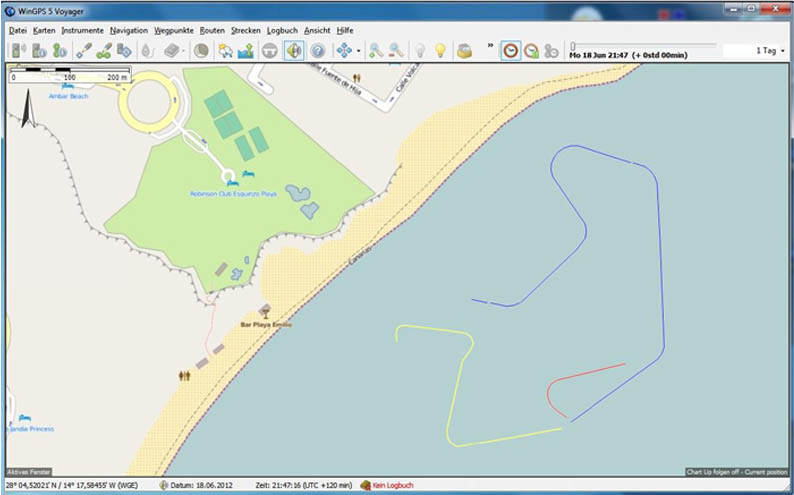

This can later be displayed as lines in WinGPS, which can be evaluated and also exported.

Due to the possibility of using standard nautical charts in different formats for the sporting boat area in this software, it is possible to provide a realistic and clear ly  background image of the boat positions and routes almost worldwide. In addition to this, it is also possible to create one’s own special maps, which are based on Google-Maps or similar programs, for example.

The potential emergency messages from AIS transmitters are clearly highlighted with special  icons in the map.

Overview of functions

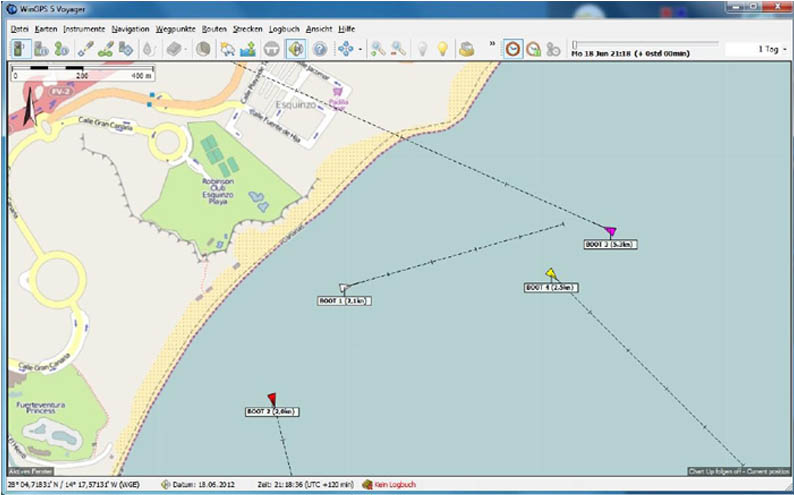

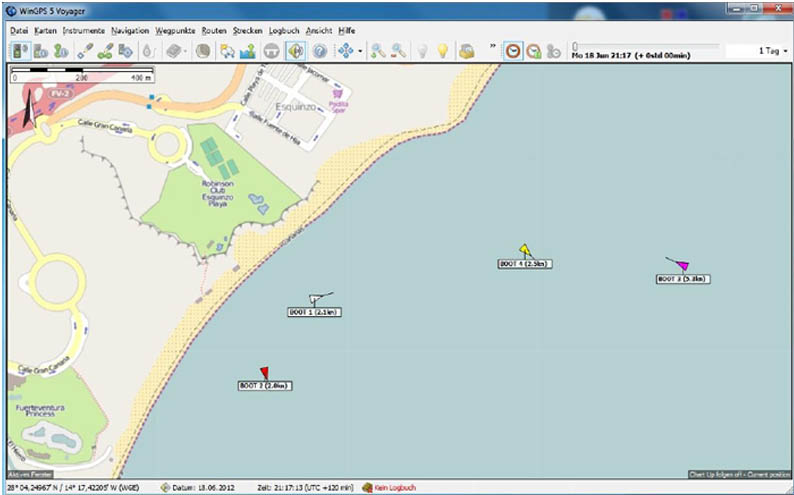

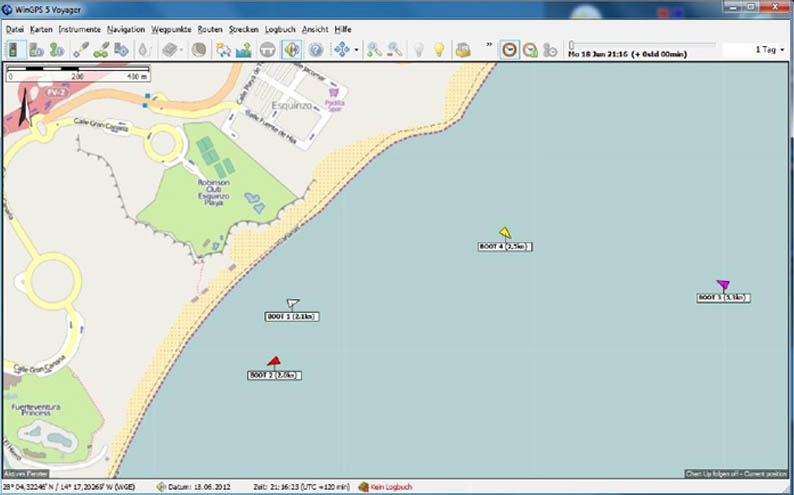

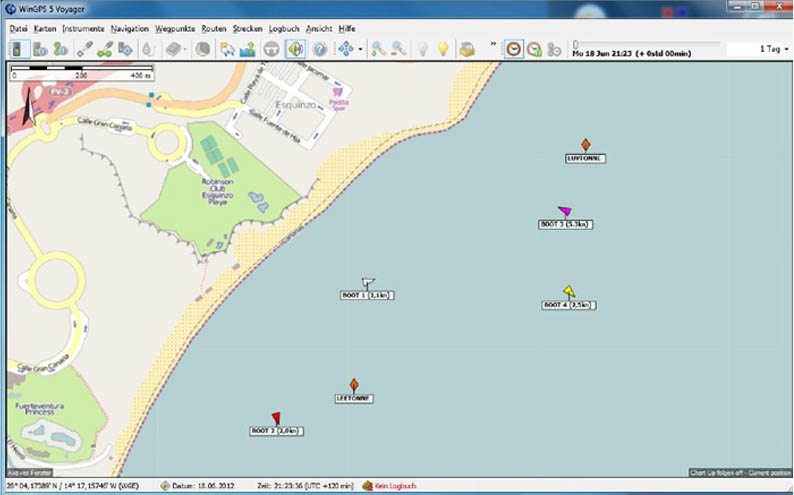

1 Representation of the current boat position as an icon on the screen on a nautical chart.
Various configuration options of representation:

  • View name of the boat
  • Display speed of the boat
  • Different colours per boat
  • Current course
  • Expected course

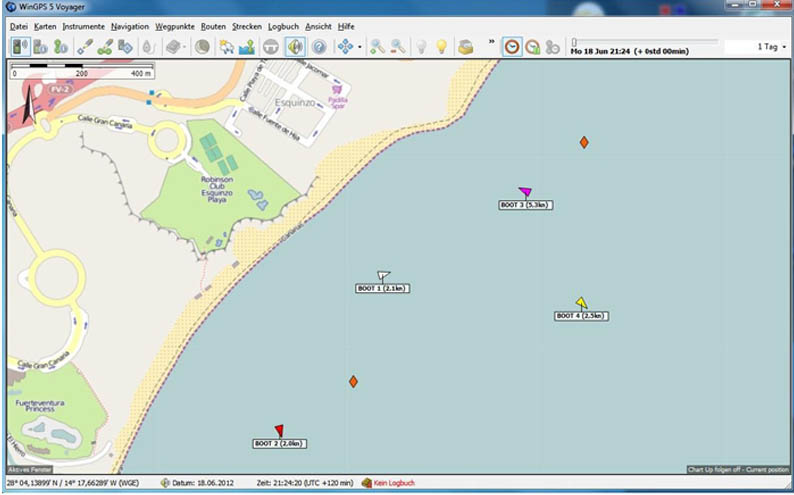

Calculation of the estimated course, even if a position signal has not been received

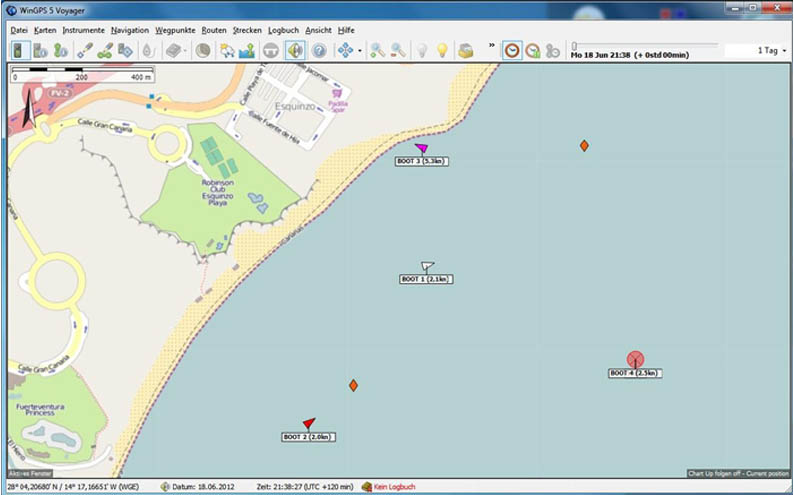

2 Representation of stationary objects, such as the course markings at regattas with actual positions when they are equipped with an appropriate transmitter.

3 Manual insertion of stationary objects in fixed positions when they have no position transmitter.

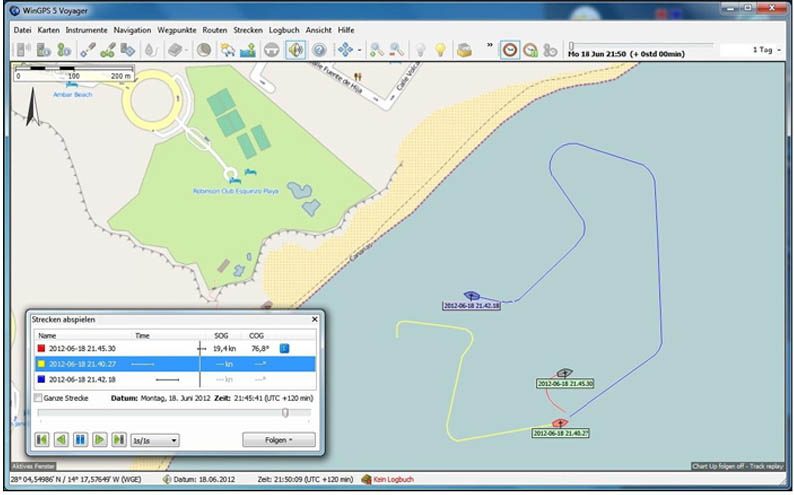

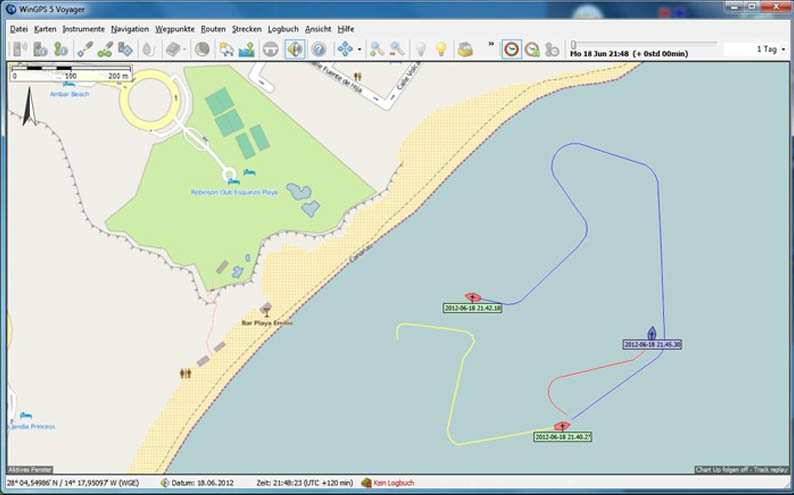

4 Recording of objects with different information and configuration options, such as:

  • Total length of the route
  • Different colors
  • Total duration of the route
  • Indicator of the speed at a given position in the subsequent playback of routes.
  • Exporting routes

A135 easyINFOBOX mobile

This product range is no longer produced.

We continue to offer the service for easyINFOBOX devices.

E

easyINFOBOX mobile (A135)

p

Product information

Independent AIS System for mobile applications

The easyINFOBOX by Weatherdock AG is a shock-proof PP/ABS box with an integrated AIS receiver. It‘s the robust, dust- and water-resistant housing for a AIS unit, receiving AIS signals from the ambient vessels which can be displayed by a mobile device. The easyINFOBOX is designed for the mobile usage of AIS data. By means of the DC plug power supply of every board net can be used. The box has exterior plugs for GPS and VHF antennas. The internal AIS unit has got a WiFi module, transmitting the data to a connected mobile device like an iPad, Tablet or Laptop. With an AIS capable software or app the received AIS data with the relevant information can be shown on the screen.

Function The AIS unit inside the easyINFOBOX  receives AIS data within a range of up to 25 miles via the connected VHF antenna. The received data are translated into  NMEA0183 protocols and transmitted to the used mobile devices like iPad, Tablet PC or Laptop. These units are getting the NMEA0183 protocols by means of WiFi TCP/IP connection in a peer-to-peer network. Required is an AIS capable software or app running on the mobile device, as well as the correspondent maps. By connecting the external GPS antenna, the AIS unit receives it‘s own GPS position.

Applications

  • Helicopter Rescue-Units of
  • oil platforms or offshore wind parks
  • Diving groups
  • Long-Term regattas with air support
  • Charter units
Z

Highlights

  • Water-resitant, shock-proof
  • easy to carry by means of two handles
  • internal AIS receiver with WiFi module
  • exterior plugs for power supply, GPS antenna and VHF antenna
  • exterior WiFi antenna

Technical Data

  • Dimensions:
  • (L) 29 cm x (W) 23 cm x (H) 9,5 cm
  • Weight: 1,5 Kg
  • Operating temperature range:
  • -20°C to 55°C
  • AIS receiver with 161,975 MHz and 162,025 MHz
  • WiFi
  • peer-to-peer-connection
  • maximum range in free air: 100m
  • usual range: approx. 30m
  • with our new WiFi function it is possible to have up to 40 clients (terminals).

Product pictures

Accessibility Menu

WordPress Cookie Plugin by Real Cookie Banner
