AIS rescue transmitter

Deutsch de_DE |

MOB / SART / DSC distress call / 121.5 MHz Homing

Sea rescue transmitter for every requirement with different ways of alerting.

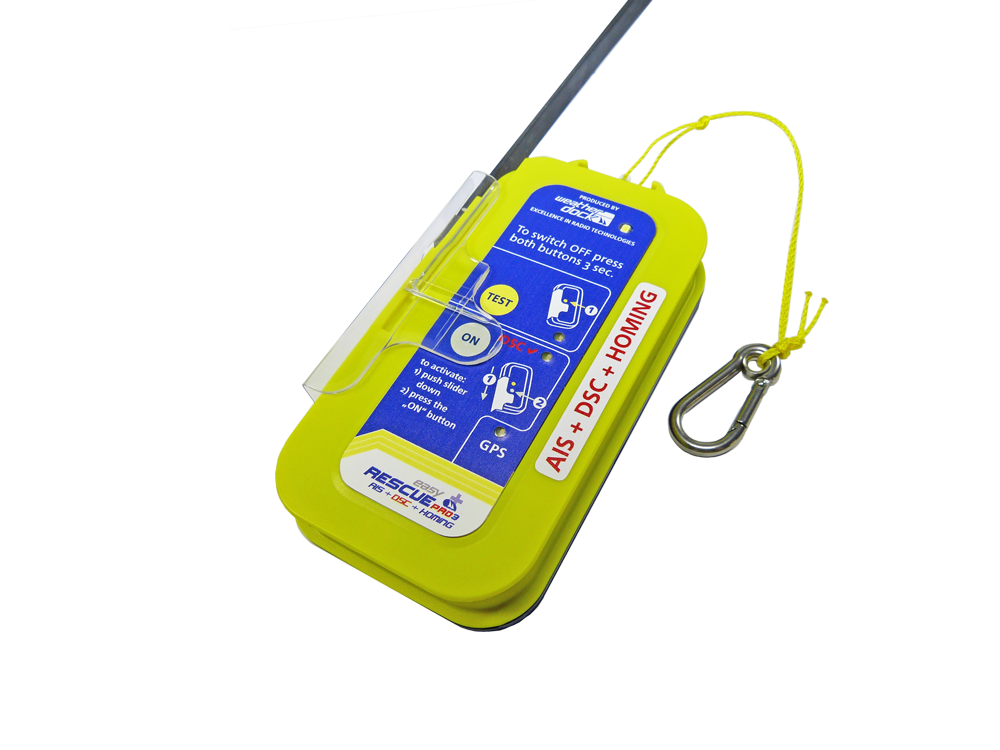

easyRESCUE-PRO3

AIS SART incl. DSC and 121.5 Homing

3 different alarm and location functions combined in one device. Based on the AIS SART easyRESCUE, the easyRESCUE-PRO3 also includes DSC “distress call” and the 121.5 MHz homing location function. The TOP solution for tough operations on the high seas from Weatherdock

AIS-DSC A04003 easyRESCUE-PRO3 Titelbild

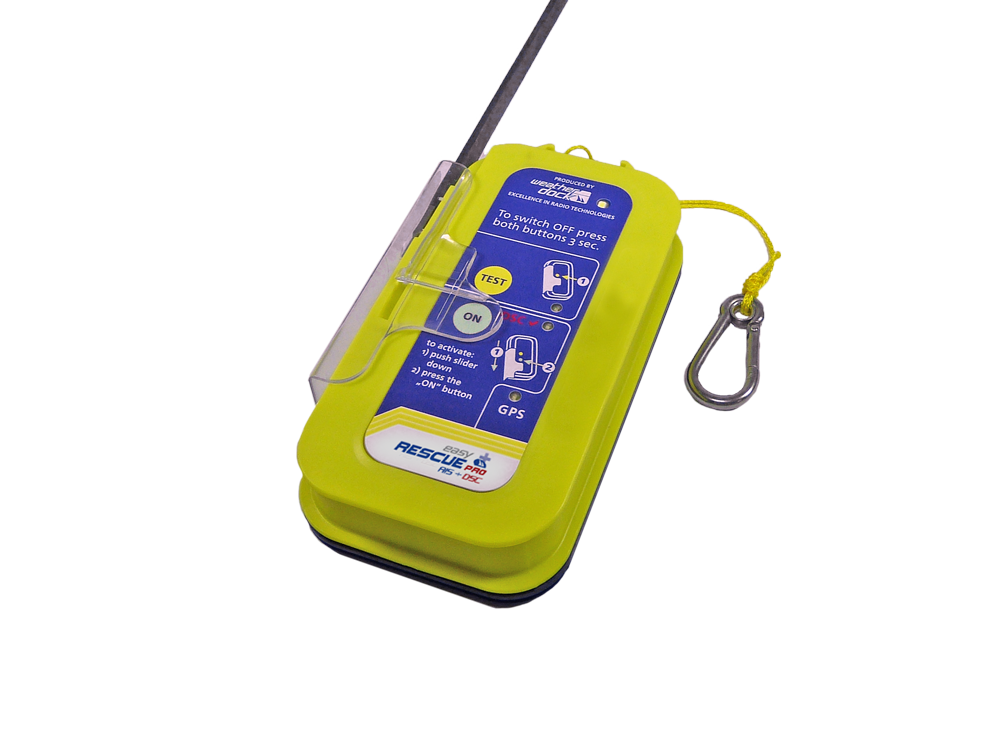

easyRESCUE-PRO

AIS SART incl. DSC

The AIS MOB easyRESCUE-PRO combines with AIS and the DSC Distress Call two different alarm functions in one device and is the perfect solution for the “man overboard” emergency.

AIS-SART A040 easyRESCUE Titelbild

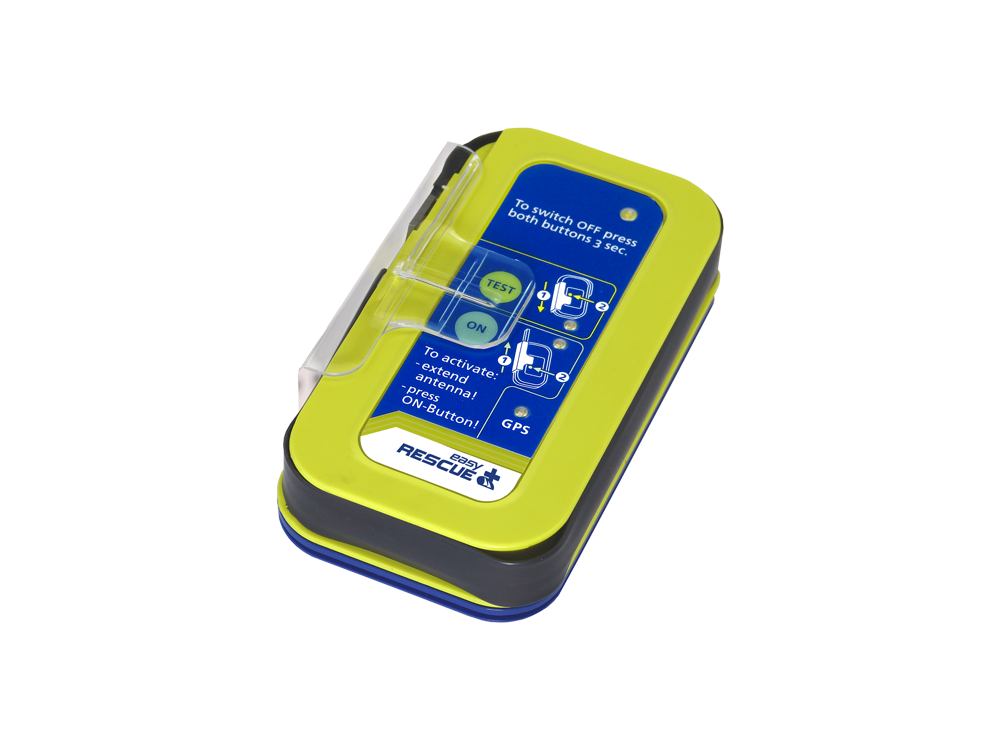

easyRESCUE

AIS SART (SOLAS)

The AIS SART easyRESCUE is a SOLAS certified rescue transmitter that withstands the highest demands under the toughest conditions. The rescue transmitter has three different activation options: manually – automatically via water contact – automatically via pull cord and magnetic contact

AIS-SART A040 easyRESCUE Titelbild

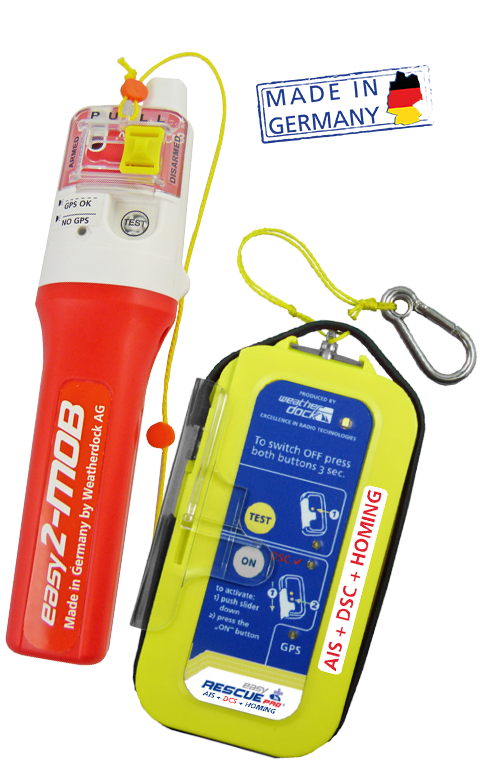

easy2-MOB

AIS MOB incl. DSC “closed loop” & “open loop”

The AIS MOB easy2-MOB combines with AIS and the DSC Distress Call two different alarm functions in one device and is the perfect solution for the “man overboard” emergency.
The easy2-MOB transmits DSC in “closed loop” and “open loop”.
According to the new standard, automatic triggering can be deactivated using the slider.



A22800 easy2-MOB Titelbild

DSC & Homing – what exactly is it?

DSC is the abbreviation for “digital selective call”. It means that DSC two-way radios can be addressed specifically using a special number. This also applies to an emergency call to the radio on a ship. Thus, DSC represents an alarm functionality. 121.5 Homing means that a signal is transmitted on this particular frequency that can be targeted in order to determine a direction in which to drive. Homing thus represents a location functionality.

AIS MOB vs. AIS SART – What are the differences?

An AIS SART is a rescue transmitter that has successfully passed all 35 tests required by the International Maritime Organization IMO for SOLAS certification. Only devices with the SOLAS symbolmay be designated as AIS SART.

An AIS SART has a higher transmission power than an AIS MOB (at least 3 watts) and a significantly longer battery power (at least 96 hours at -20 ° C). In addition, “buoyancy without buoyancy aid”, “resistance to oil, UV radiation, salt water and impact on water from great heights” play an important role in SOLAS certification – along with many other test scenarios.

IMO – SOLAS >>

Transmission powerTransmission power

When people talk about transmission power, that doesn’t mean that everyone is talking about the same thing. There are big differences between nominal transmission power and radiated transmission power.

Function overview of our AIS/DSC Rescue Transmitter

Pos Name Part# Type ATEX variant available Full DSC Manual Water Magnet pull off
1 easy2-MOB A22800 AIS-MOB No Yes Yes Yes No
2 easyONE A109 AIS-MOB No No Yes Yes No
3 easyONE-M A109-M AIS-MOB No No Yes No No
4 easyRESCUE A040 AIS-SART Yes No Yes No No
5 easyRESCUE-A A049 AIS-SART Yes No Yes Yes No
6 easyRESCUE-BW-COM A040-BW-COM AIS-SART Yes No Yes Yes Yes
7 easyRESCUE-PRO(BT) A040-PRO(BT) AIS-SART
/MOB
No Yes Yes Yes Yes
8 easyRESCUE-PRO3 A04003 AIS-SART No Yes Yes Yes Yes
Pos Name Part# Type Solas CE FCC MED B/D BSH
1 easy2-MOB A22800 AIS-MOB No Yes Yes No No
2 easyONE A109 AIS-MOB No Yes Yes No No
3 easyONE-M A109-M AIS-MOB No Yes Yes No No
4 easyRESCUE A040 AIS-SART Yes Yes Yes Yes Yes
5 easyRESCUE-A A049 AIS-SART Yes Yes Yes Yes Yes
6 easyRESCUE-BW-COM A040-BW-COM AIS-SART Yes Yes Yes Yes Yes
7 easyRESCUE-PRO(BT) A040-PRO(BT) AIS-SART
/MOB
Yes Yes Yes * *
8 easyRESCUE-PRO3 A04003 AIS-SART
/MOB
Yes Yes Yes * *

* Contact Weatherdock

Pos Name Part# Type Radiatet power [W] Battery life time* Transmission time at -20C [h] GPS Channels Bluetooth
1 easy2-MOB A22800 AIS-MOB 1 7 24 50 Yes
2 easyONE A109 AIS-MOB 1 7 24 50 Yes
3 easyONE-M A109-M AIS-MOB 1 7 24 50 Yes
4 easyRESCUE A040 AIS-SART >2 5 96 50 No
5 easyRESCUE-A A049 AIS-SART >2 5 96 50 No
6 easyRESCUE-BW-COM A040-BW-COM AIS-SART >2 5 96 50 No
7 easyRESCUE-PRO(BT) A040-PRO(BT) AIS-SART >2 5 96** 50 Yes
8 easyRESCUE-PRO3 A040-PRO AIS-SART >2 5 45** 50 Yes

*…SOLAS units, battery lifetime change after 5 years is a request
**…96h after “closed loop” acknowledgement, 36h in AIS-SART and “open loop”

Pos Name Part# Type High bright Signal LED GPS LED TEST LED ON LED
1 easy2-MOB A22800 AIS-MOB Yes Yes GPS LED used Highbright LED used
2 easyONE A109 AIS-MOB Yes Yes GPS LED used Highbright LED used
3 easyONE-M A109-M AIS-MOB Yes Yes GPS LED used Highbright LED used
4 easyRESCUE A040 AIS-SART Yes Yes Yes Yes
5 easyRESCUE-A A049 AIS-SART Yes Yes Yes Yes
6 easyRESCUE-BW-COM A040-BW-COM AIS-SART Yes Yes Yes Yes
7 easyRESCUE-PRO(BT) A040-PRO(BT) AIS-SART Yes Yes Yes Yes
8 easyRESCUE-PRO3 A04003 AIS-SART Yes Yes Yes Yes



Pos Name Part# Type IP 68 Floating Size [mm] Weight [gr]
1 easy2-MOB A22800 AIS-MOB Yes, 10m under Water Yes 168 * 48 * 27 120
2 easyONE A109 AIS-MOB Yes, 10m under Water Yes 168 * 48 * 27 120
3 easyONE-M A109-M AIS-MOB Yes, 10m under Water Yes 168 * 48 * 27 120
4 easyRESCUE A040 AIS-SART Yes, 10m under Water Yes 125 * 68 * 30 210
5 easyRESCUE-A A049 AIS-SART Yes, 10m under Water Yes 125 * 68 * 30 210
6 easyRESCUE-BW-COM A040-BW-COM AIS-SART Yes, 10m under Water Yes 130 * 68 * 30 220
7 easyRESCUE-PRO A040-PRO(BT) AIS-SART Yes, 10m under Water Yes 125 * 68 * 30 350
8 easyRESCUE-PRO3 A04003 AIS-SART Yes, 10m under Water Yes 125 * 68 * 30 350
