easyMAtoN Type 1
Mobile AIS ‚Aid to Navigation‘
The mobile version of the proven easyAtoN Type 1 AIS transmitter,
integrated in a robust floating housing.
AIS AtoN = Aid to Navigation
|
- Floatable, rugged and waterproof housing (IP67)
-
Easy to use
- Low power consumption
For more information and a non-binding offer, please contact us:
+49 (0)911-376638-30
info@weatherdock.de
Product photos
Product information
Function

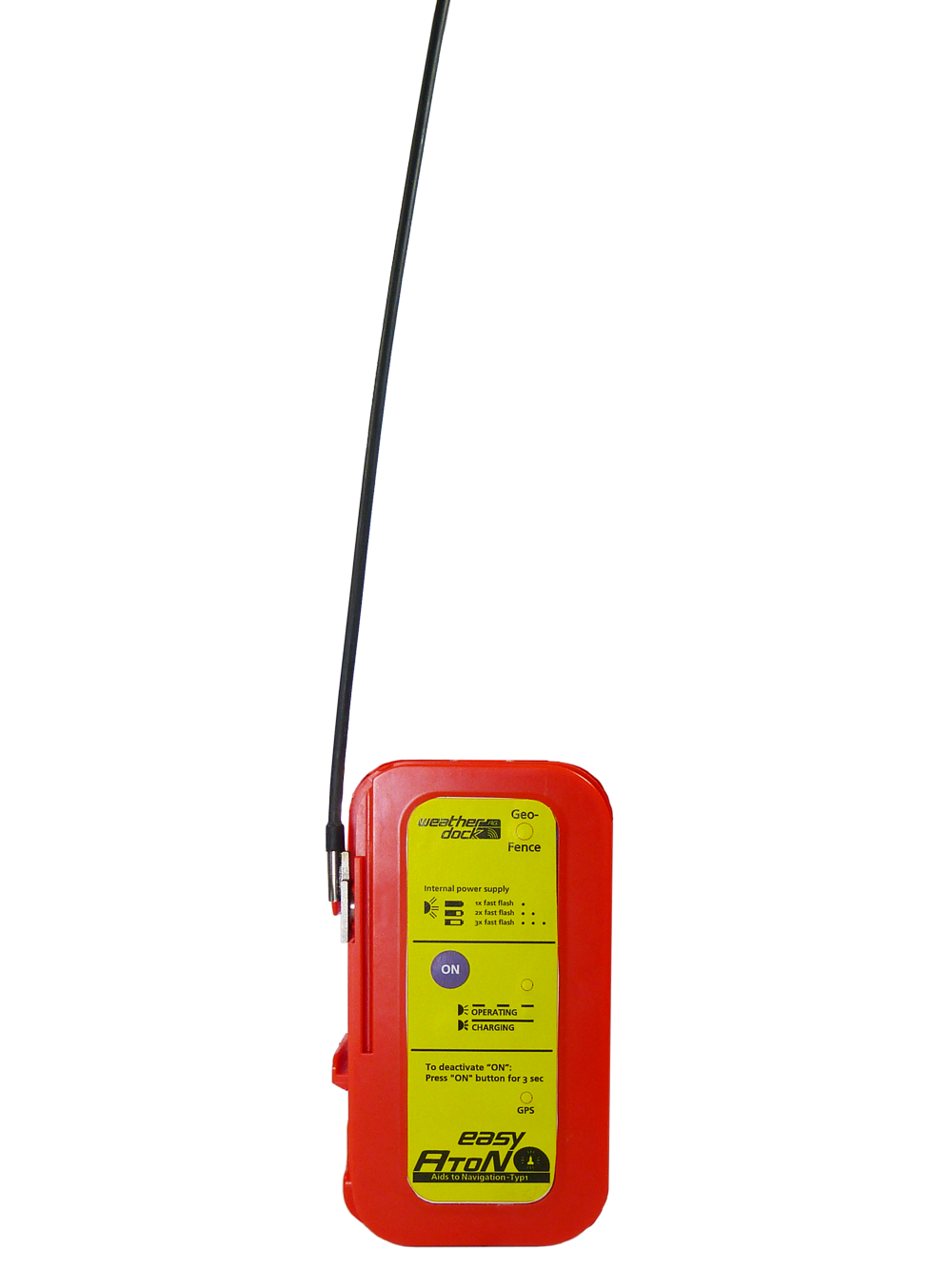

Mobile AIS Aid to Navigation (AtoN) Transmitter Type 1
The easyMAtoN Type 1 is a mobile AIS transmitter used as a “navigation aid” to mark the location and identification of moving objects. By displaying the AIS signal on the chart plotters, this information is provided to nearby vessels.

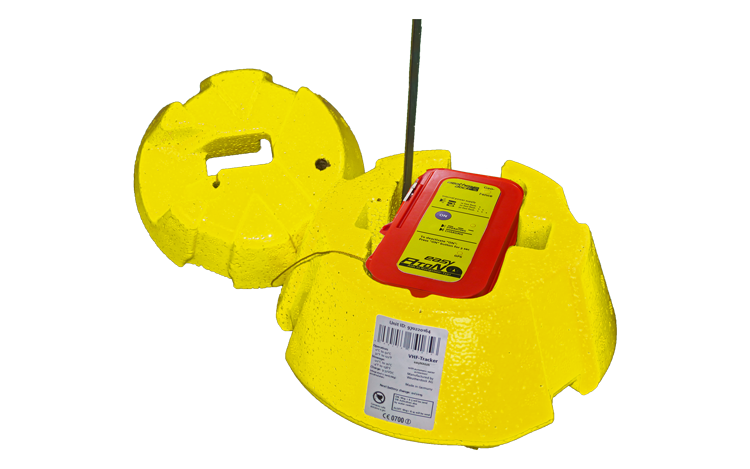

The easyMAtoN Type 1 has a robust IP67 housing and is housed in a special floating box. The device is capable of creating “real” electronic navigation marks that appear on AIS-enabled electronic chart plotters or navigation PC software.
The easyMAtoN Type 1 is designed for mobile use in the maritime sector.
Function
The easyMAtoN Type 1 operates in AIS FATDMA (Fixed Access Time Division Multiple Access) mode in a special time slot that must be reserved by an AIS base station.
The ship’s AIS system receives the information that this slot is occupied by the base station and does not transmit its AIS data within this slot. The easyMAtoN Type 1 is programmed in advance by the administrator using a programming socket and special programming software so that only this slot is used to transmit the position and identification of the marker on both AIS frequencies.
Within the range of the AIS base station in operation, a separate time slot must be reserved for each AtoN Type 1 in order to transmit in the AIS traffic and inform all ships entering and leaving.
To configure the easyMAtoN Type 1, the programing socket A124 (available as an accessory) must be connected to a PC or laptop with the programming software running using a USB cable. The easyMAtoN Type 1 is plugged into the programming socket. The socket can be used by an administration for more than one easyMAtoN Type 1 configuration.
Highlights
- Integrated GPS antenna
- AIS FATDMA
- Waterproof and rigid housing
- Floating box
Used Applications
- Marking of moving objects
Technical Data
- Dimensions including box:
- Height: 13 cm
- Diameter: 20 cm
- Weight: 750 g
- Power Supply:
- external power via cable
- Internal batteries for 5 days usage without power
- Power consumption:
- Transmission Power >= 2 Watt
- IP67 waterproof
- 72-channel GNSS receiver
- Operation temparature: -10°C to + 55°C
- Storage temperature range: -30°C to + 60°C
- Functionality: 3 Status LEDs
- Compliance
- ITU-R M. 1371-5
- IEC/EN 60945:2002 + Corr. 1:2008
- IEC 61097-14:2010
- IEC 62287-1:2013 Clause 11, 12
- IEC 61108-1:2003
- IEC 60950-1:2006
- IEC 62368-1:2014
- IEC 62320-2 Ed.2 (2016)
For more information and a non-binding offer, please contact us:
+49 (0)911-376638-30
info@weatherdock.de
