Running out mid/end 2017!
Service for this equipment continues!

<iframe style="overflow: hidden;" src="https://www.easyais.com/tools/running-out/" width="100%" height="130px" scrolling="no" sandbox="allow-same-origin allow-scripts allow-forms"></iframe>

Functionality:

The easyAIS receives the AIS VHF radio signals, actually most send by the commercial vessels (but also from an increasing figure of pleasure boaters). These signals are proceeded into a NMEA Signal which can be interpreted from the latest chart plotter or a PC software. The unit has got an integrated antenna – splitter and this makes the installation of the unit to the existing VHF antenna very easy. By means of the integrated splitter with integrated RF-signal amplifier physical losses are eliminated, which is unique in nowadays market.

What is necessary to use the easyAIS-IS Generation?

There is necessary the own existing VHF antenna and nothing more. The VHF Radio as well as the regular radio can be connected to the easyAIS-IS.

Which Chart plotter/PC software fits together with the easyAIS?

Most of the nowadays new chart plotters or PC software are capable to show AIS data on the screen.

  • 2 channel receiver to receive AIS data on 161,975 MHz and 162,025 MHz Class A and Class B
  • Sensitivity: -112 dBm (Therefore – 3 dBm better than the norm for Class A receivers)
  • Channel spacing: 25 kHz

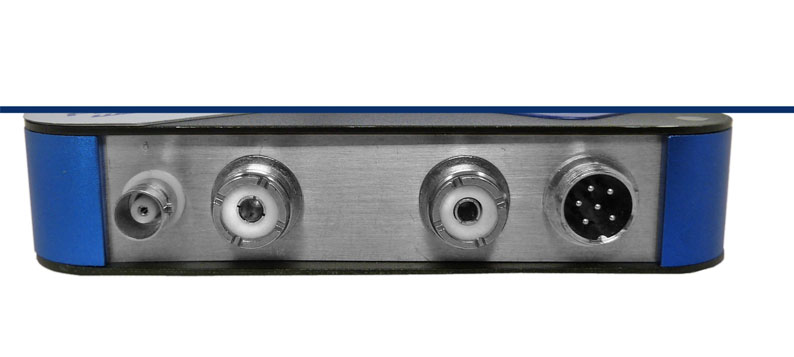

  • Frequency selective antenna splitter with the possibility to connect to the easyAIS-IS:
    • VHF Antenna, 50 Ohm, SO239
    • VHF radio (IN/OUT): 50 Ohm, SO239
  • Regular radio: 50 Ohm, BNC for frequencies from app. 150 kHz to 110 MHz
  • Power: 9 v – 28 VDC, @ < 150 mA (Average of different modes)
  • NMEA 0183 output, message type VDM

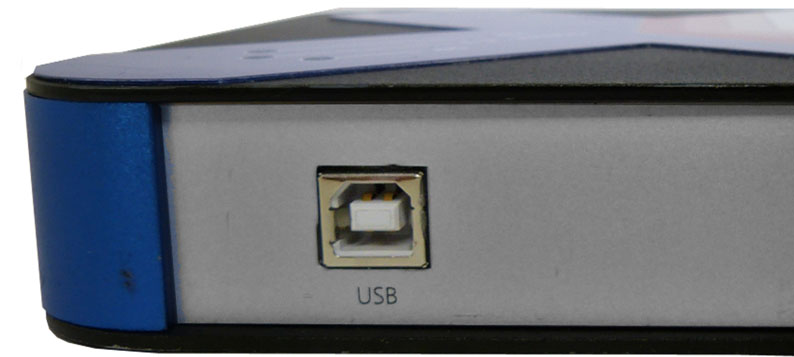

  • USB output for direct connection to PC
  • Multiplex input for GPS data to pass through upconverted GPS data from 4800 Baud to 38400 Baud
  • Ambient conditions: under deck, 0° C to 60° C
  • 150 mm (l) x 150 mm (w) x 35 mm (h))
  • 2 channel AIS receiver with newest micro processor (ìP) technology
  • Highest sensitivity at optimized selectivity
  • Enlarged DC power input 9V – 28V
  • Integrated splitter with integrated RF-signal amplifier
  • Connection of the easyAIS-IS to the existing VHF antenna
  • moreover there can be connected: VHF Radio, Regular radio, long wave up to VHF
  • Article number A043
